INA RSL185011-A-2S
Cylindrical Roller Bearings

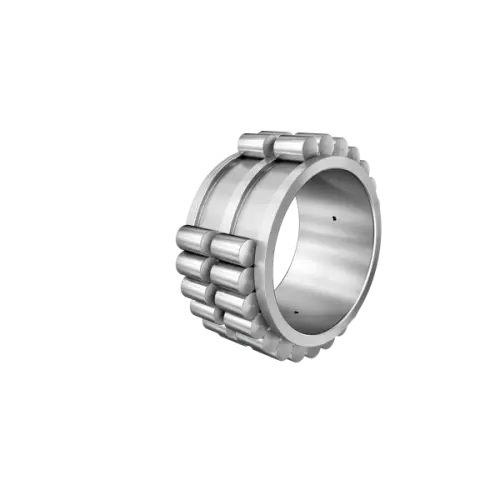

Cylindrical roller bearing RSL18, full complement roller set, two-row, semi-locating bearing, no outer ring, 3 ribs on inner ring, type RSL18
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

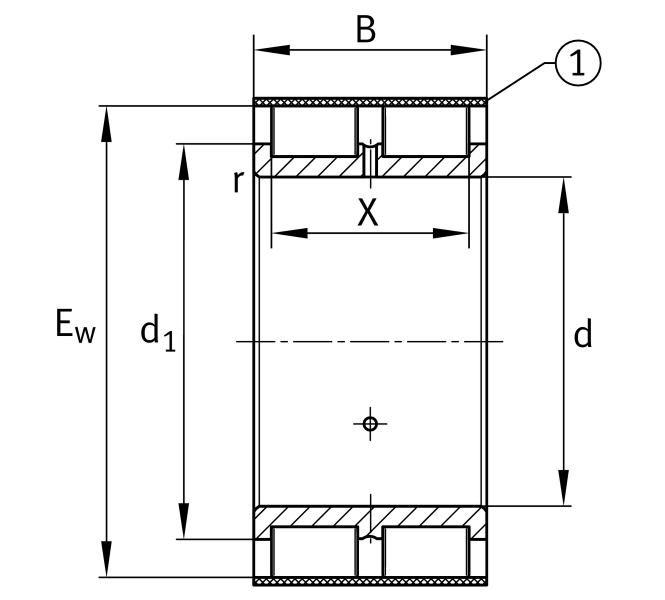

Main Dimensions & Performance Data
d
55 mm
Rib diameter inner ring
Ew
83.54 mm
B
46 mm
Width
Cr
182,000 N
Basic dynamic load rating, radial
C0r
275,000 N
Basic static load rating, radial
Cur
37,000 N
Fatigue load limit, radial
CG
4,550 1/min
Limiting speed
nϑr
2,950 1/min
Reference speed
≈m
0.86 kg
Weight
Mounting dimensions
da min
68.5 mm
Minimum diameter shaft shoulder
