INA RSL185020-A-2S
Cylindrical Roller Bearings
Cylindrical roller bearing RSL18, full complement roller set, two-row, semi-locating bearing, no outer ring, 3 ribs on inner ring, type RSL18
(BRAND)：INA
(Availability)：In Stock

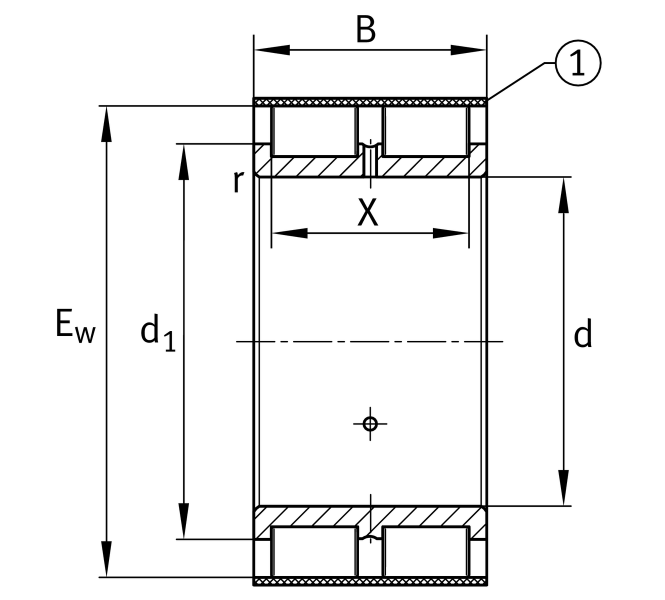

Main Dimensions & Performance Data
d
100 mm
Rib diameter inner ring
Ew
139.65 mm
B
67 mm
Width
Cr
370,000 N
Basic dynamic load rating, radial
C0r
600,000 N
Basic static load rating, radial
Cur
87,000 N
Fatigue load limit, radial
CG
2,600 1/min
Limiting speed
nϑr
1,930 1/min
Reference speed
≈m
2.6 kg
Weight
Mounting dimensions
da min
116 mm
Minimum diameter shaft shoulder
