INA RSL185032-A-BR-2S
Cylindrical Roller Bearings
Cylindrical roller bearing RSL18, full complement roller set, two-row, semi-locating bearing, no outer ring, 3 ribs on inner ring, type RSL18
(BRAND)：INA
(Availability)：In Stock

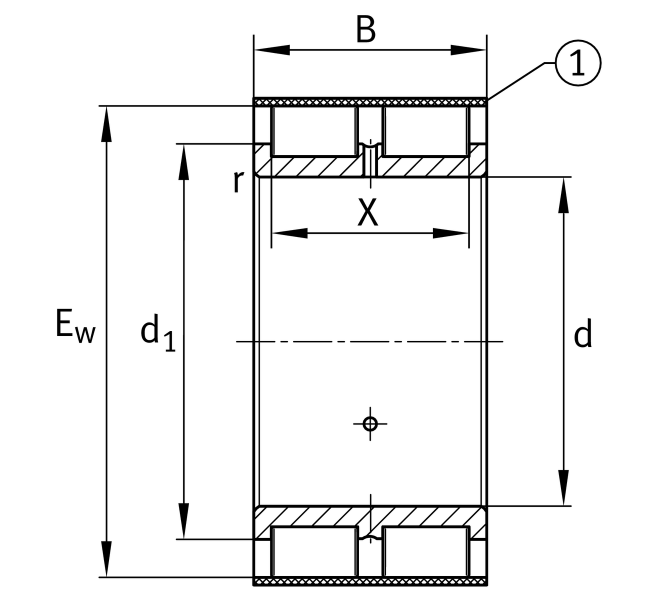

Main Dimensions & Performance Data
d
160 mm
Rib diameter inner ring
Ew
224.8 mm
B
109 mm
Width
Cr
930,000 N
Basic dynamic load rating, radial
C0r
1,610,000 N
Basic static load rating, radial
Cur
210,000 N
Fatigue load limit, radial
CG
1,600 1/min
Limiting speed
nϑr
1,030 1/min
Reference speed
≈m
11.086 kg
Weight
Mounting dimensions
da min
185 mm
Minimum diameter shaft shoulder
