INA RSL185034-A-XL
Cylindrical Roller Bearings
Cylindrical roller bearing RSL18..-XL, full complement roller set, two-row, semi-locating bearing, no outer ring, 3 ribs on inner ring, type RSL18
(BRAND)：INA
(Availability)：In Stock

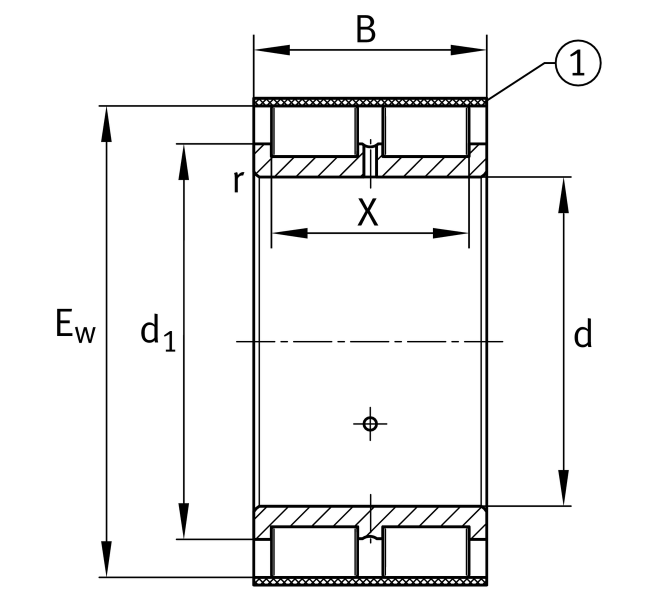

Main Dimensions & Performance Data
d
170 mm
Rib diameter inner ring
Ew
242.85 mm
B
122 mm
Width
Cr
1,360,000 N
Basic dynamic load rating, radial
C0r
2,110,000 N
Basic static load rating, radial
Cur
330,000 N
Fatigue load limit, radial
CG
1,480 1/min
Limiting speed
nϑr
900 1/min
Reference speed
≈m
15.25 kg
Weight
Mounting dimensions
da min
198.5 mm
Minimum diameter shaft shoulder
