INA RSL20x32,17×23-XL-RV
Cylindrical Roller Bearings
RSL in special dimensions, full complement roller set, two-row, semi-locating bearing, no outer ring, 3 ribs on inner ring, edge radius RV on one side, type RSL
(BRAND)：INA
(Availability)：In Stock

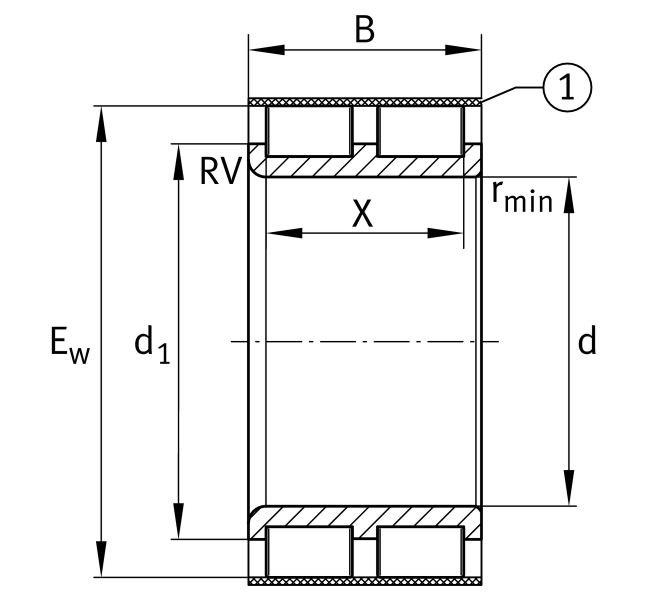

Main Dimensions & Performance Data
d
20 mm
Rib diameter inner ring
Ew
32.17 mm
B
23 mm
Width
Cr
30,500 N
Basic dynamic load rating, radial
C0r
32,500 N
Basic static load rating, radial
Cur
5,600 N
Fatigue load limit, radial
CG
12,500 1/min
Limiting speed
nϑr
6,200 1/min
Reference speed
≈m
0.06 kg
Weight

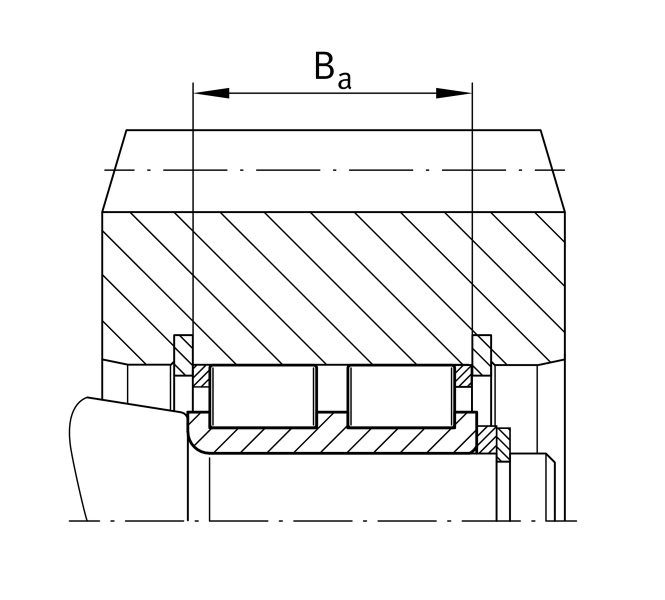

Mounting dimensions
da min
27.5 mm
Minimum diameter shaft shoulder
