INA RSL20x36,81×30-XL-RV-DP
Cylindrical Roller Bearings
RSL in special dimensions, full complement roller set, two-row, semi-locating bearing, no outer ring, 3 ribs on inner ring, 2 thrust washers, Retaining Rings, edge radius RV on one side,typ RSL18
(BRAND)：INA
(Availability)：In Stock

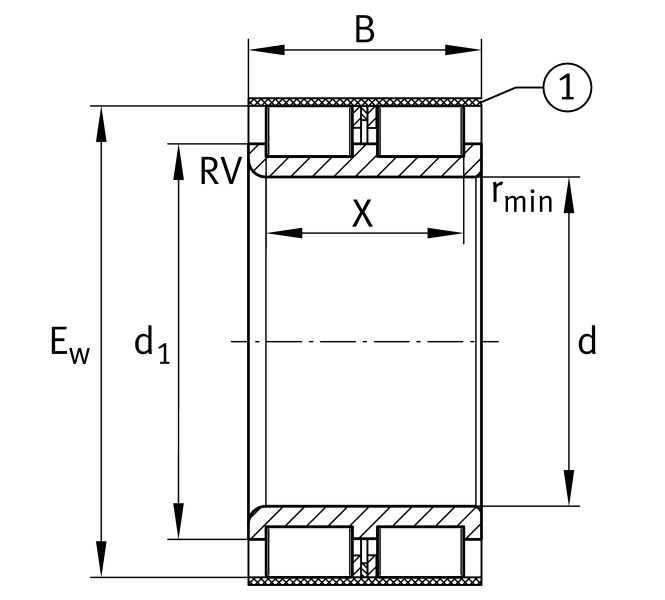

Main Dimensions & Performance Data
d
20 mm
Rib diameter inner ring
Ew
36.81 mm
B
30 mm
Width
Cr
53,000 N
Basic dynamic load rating, radial
C0r
52,000 N
Basic static load rating, radial
Cur
9,100 N
Fatigue load limit, radial
CG
11,400 1/min
Limiting speed
nϑr
5,700 1/min
Reference speed
≈m
0.12 kg
Weight

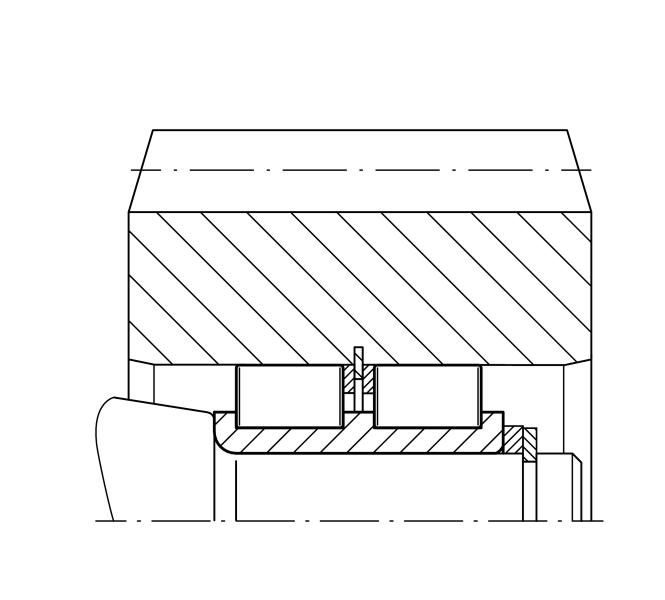

Mounting dimensions
da min
28.5 mm
Minimum diameter shaft shoulder
