INA RSL25x38,58×30-XL-RV-DP
Cylindrical Roller Bearings

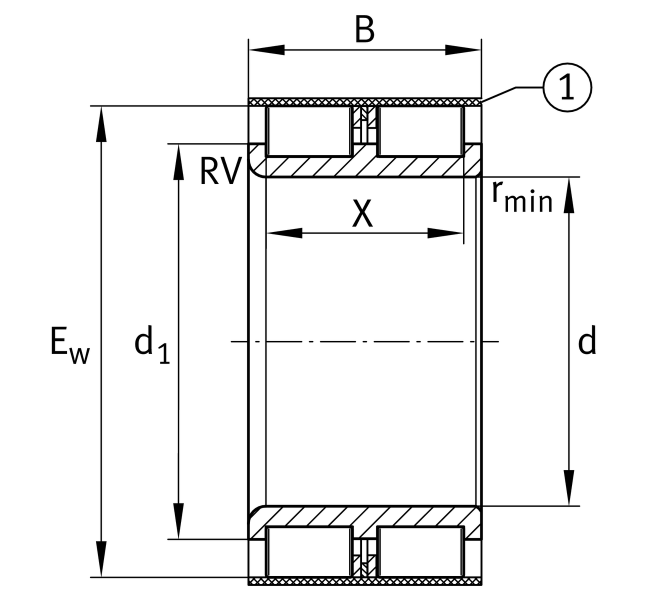

RSL in special dimensions, full complement roller set, two-row, semi-locating bearing, no outer ring, 3 ribs on inner ring, 2 thrust washers, Retaining Rings, edge radius RV on one side,typ RSL18
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
25 mm
Rib diameter inner ring
Ew
38.58 mm
B
30 mm
Width
Cr
54,000 N
Basic dynamic load rating, radial
C0r
62,000 N
Basic static load rating, radial
Cur
10,700 N
Fatigue load limit, radial
CG
10,400 1/min
Limiting speed
nϑr
5,200 1/min
Reference speed
≈m
0.11 kg
Weight

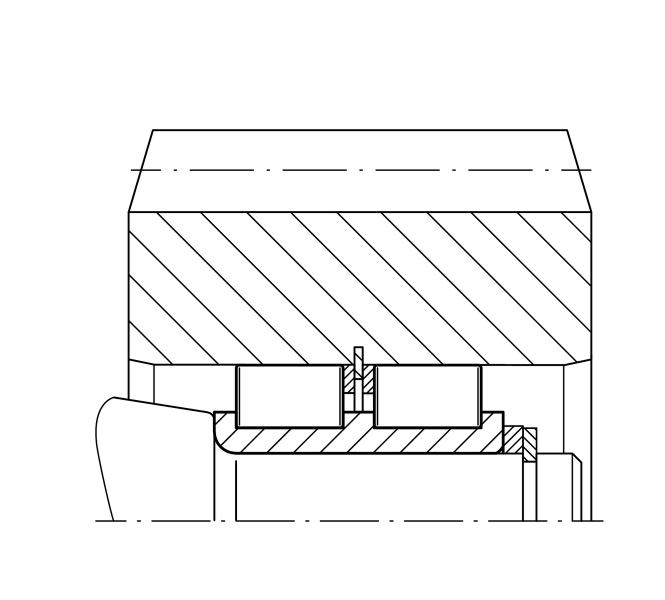

Mounting dimensions
da min
32 mm
Minimum diameter shaft shoulder
