INA RSL25x42,51×24-XL-RV
Cylindrical Roller Bearings
RSL in special dimensions, full complement roller set, two-row, semi-locating bearing, no outer ring, 3 ribs on inner ring, edge radius RV on one side, type RSL
(BRAND)：INA
(Availability)：In Stock

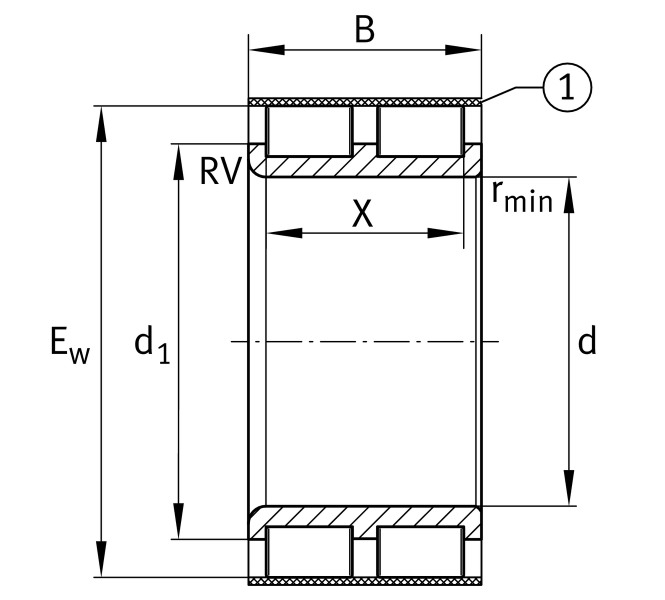

Main Dimensions & Performance Data
d
25 mm
Rib diameter inner ring
Ew
42.51 mm
B
24 mm
Width
Cr
40,500 N
Basic dynamic load rating, radial
C0r
38,500 N
Basic static load rating, radial
Cur
7,000 N
Fatigue load limit, radial
CG
9,500 1/min
Limiting speed
nϑr
4,750 1/min
Reference speed
≈m
0.12 kg
Weight

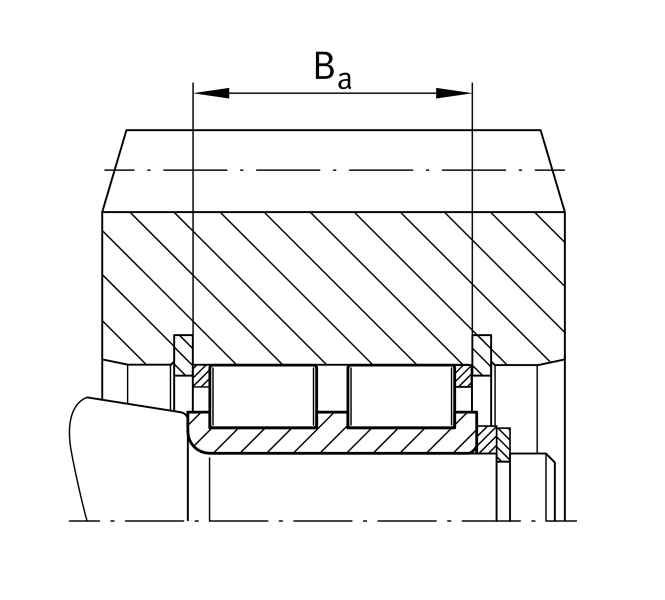

Mounting dimensions
da min
34.5 mm
Minimum diameter shaft shoulder
