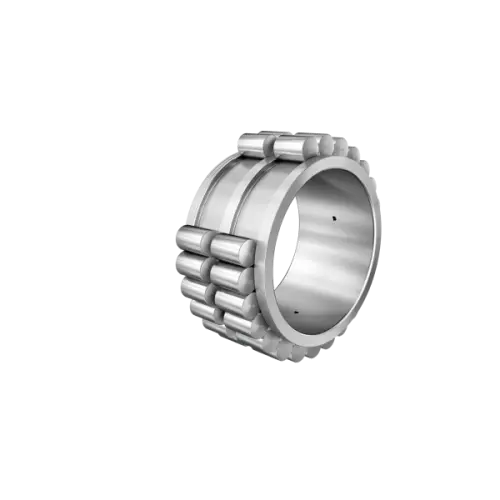

INA RSL30X49,6X32-XL-RV
Cylindrical Roller Bearings
RSL in special dimensions, full complement roller set, two-row, semi-locating bearing, no outer ring, 3 ribs on inner ring, edge radius RV on one side, type RSL
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

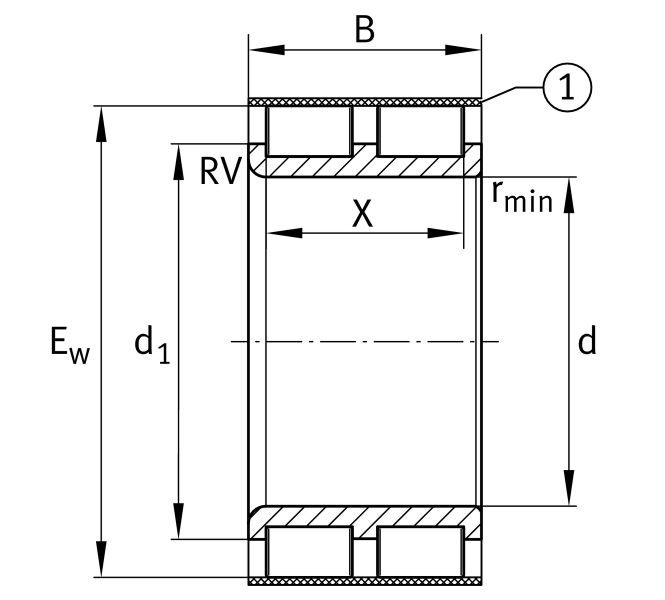

Main Dimensions & Performance Data
d
30 mm
Rib diameter inner ring
Ew
49.6 mm
B
32 mm
Width
Cr
78,000 N
Basic dynamic load rating, radial
C0r
84,000 N
Basic static load rating, radial
Cur
15,200 N
Fatigue load limit, radial
CG
8,100 1/min
Limiting speed
nϑr
4,050 1/min
Reference speed
≈m
1.2 kg
Weight

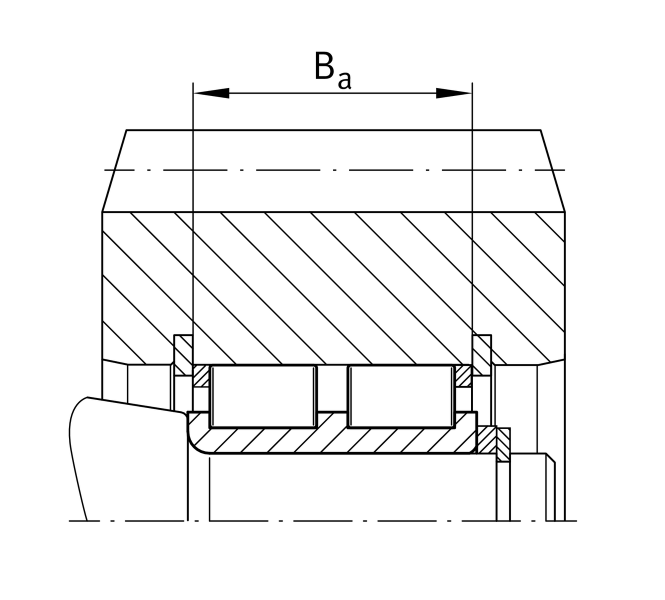

Mounting dimensions
da min
40 mm
Minimum diameter shaft shoulder
