INA RSL40x61,74×36-XL-RV
Cylindrical Roller Bearings
RSL in special dimensions, full complement roller set, two-row, semi-locating bearing, no outer ring, 3 ribs on inner ring, edge radius RV on one side, type RSL
(BRAND)：INA
(Availability)：In Stock

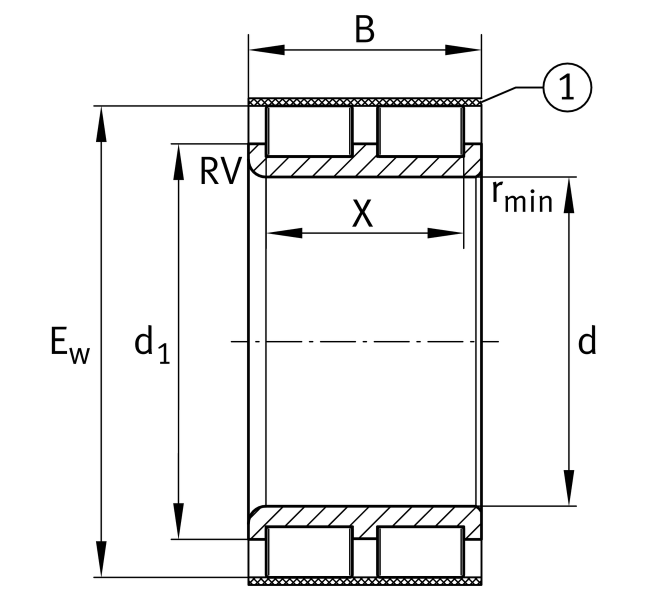

Main Dimensions & Performance Data
d
40 mm
Rib diameter inner ring
Ew
61.74 mm
B
36 mm
Width
Cr
113,000 N
Basic dynamic load rating, radial
C0r
133,000 N
Basic static load rating, radial
Cur
22,800 N
Fatigue load limit, radial
CG
6,300 1/min
Limiting speed
nϑr
3,150 1/min
Reference speed
≈m
0.34 kg
Weight

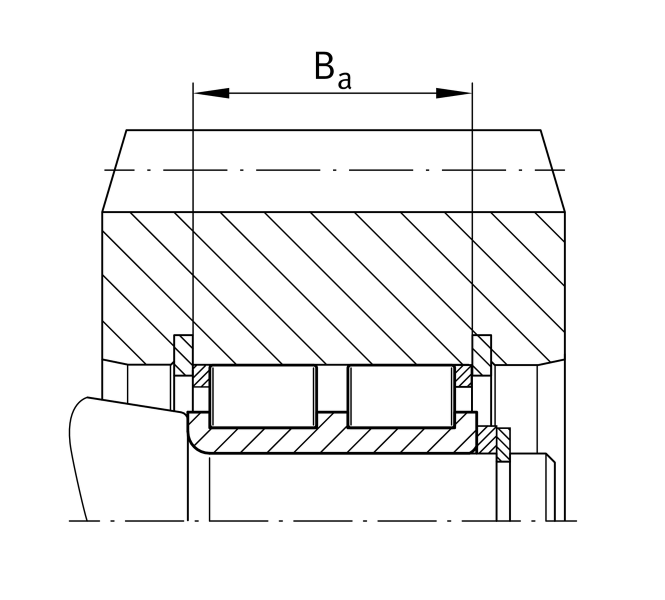

Mounting dimensions
da min
50.5 mm
Minimum diameter shaft shoulder
