INA RSL45x66,85×40-XL-RV
Cylindrical Roller Bearings
RSL in special dimensions, full complement roller set, two-row, semi-locating bearing, no outer ring, 3 ribs on inner ring, edge radius RV on one side, type RSL
(BRAND)：INA
(Availability)：In Stock

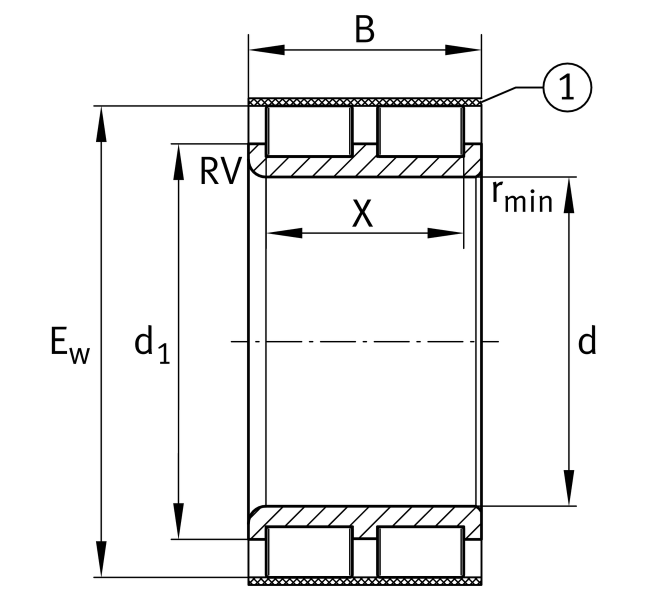

Main Dimensions & Performance Data
d
45 mm
Rib diameter inner ring
Ew
66.85 mm
B
40 mm
Width
Cr
137,000 N
Basic dynamic load rating, radial
C0r
176,000 N
Basic static load rating, radial
Cur
30,500 N
Fatigue load limit, radial
CG
5,800 1/min
Limiting speed
nϑr
2,900 1/min
Reference speed
≈m
0.43 kg
Weight

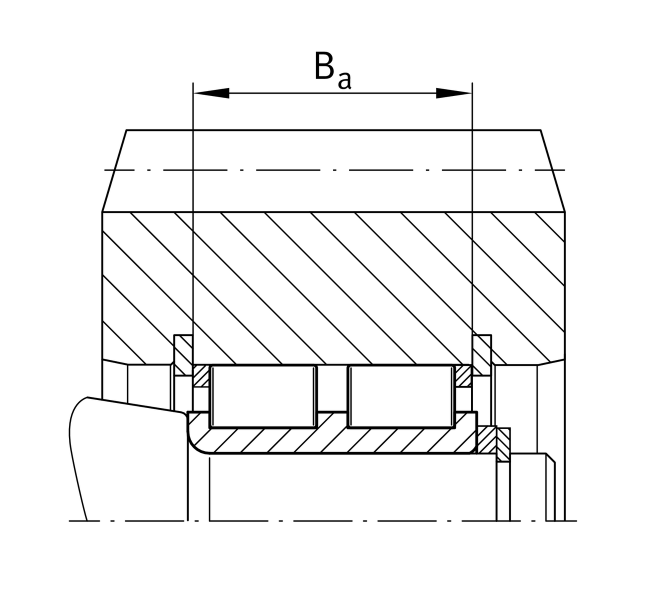

Mounting dimensions
da min
55.5 mm
Minimum diameter shaft shoulder
