INA RSL45x74,43×44-XL-RV-DP
Cylindrical Roller Bearings
RSL in special dimensions, full complement roller set, two-row, semi-locating bearing, no outer ring, 3 ribs on inner ring, 2 thrust washers, Retaining Rings, edge radius RV on one side,typ RSL18
(BRAND)：INA
(Availability)：In Stock

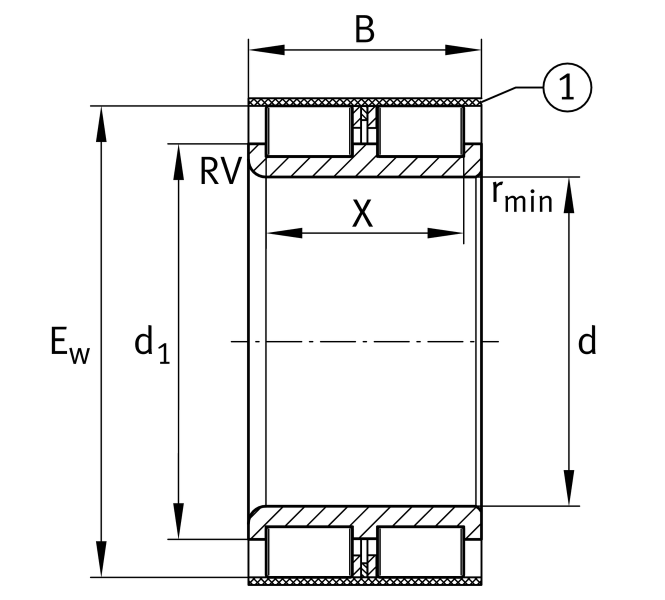

Main Dimensions & Performance Data
d
45 mm
Rib diameter inner ring
Ew
74.43 mm
B
44 mm
Width
Cr
173,000 N
Basic dynamic load rating, radial
C0r
196,000 N
Basic static load rating, radial
Cur
32,500 N
Fatigue load limit, radial
CG
5,300 1/min
Limiting speed
nϑr
2,650 1/min
Reference speed
≈m
0.65 kg
Weight
Mounting dimensions
da min
57 mm
Minimum diameter shaft shoulder
