INA RSL50x69,67×40-XL-RV
Cylindrical Roller Bearings
RSL in special dimensions, full complement roller set, two-row, semi-locating bearing, no outer ring, 3 ribs on inner ring, edge radius RV on one side, type RSL
(BRAND)：INA
(Availability)：In Stock

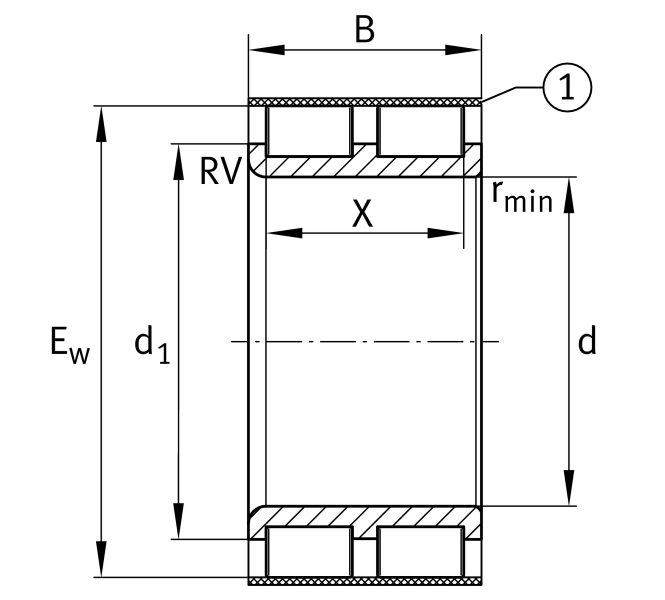

Main Dimensions & Performance Data
d
50 mm
Rib diameter inner ring
Ew
69.67 mm
B
40 mm
Width
Cr
135,000 N
Basic dynamic load rating, radial
C0r
193,000 N
Basic static load rating, radial
Cur
33,500 N
Fatigue load limit, radial
CG
5,400 1/min
Limiting speed
nϑr
2,700 1/min
Reference speed
≈m
0.42 kg
Weight

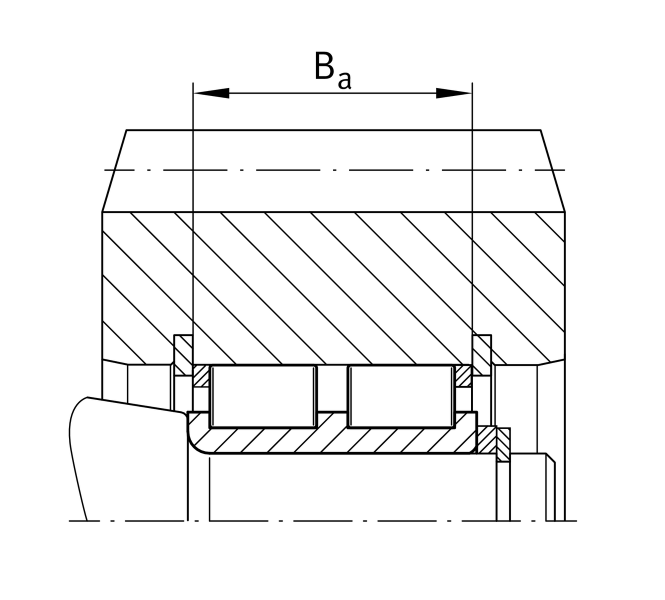

Mounting dimensions
da min
60 mm
Minimum diameter shaft shoulder
