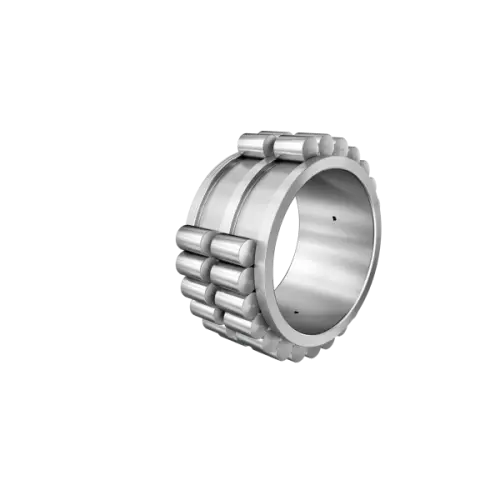

INA RSL60x86,74×50-XL-RVV
Cylindrical Roller Bearings
RSL in special dimensions, full complement roller set, two-row, semi-locating bearing, no outer ring, 3 ribs on inner ring, edge radius RV on one side, type RSL
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

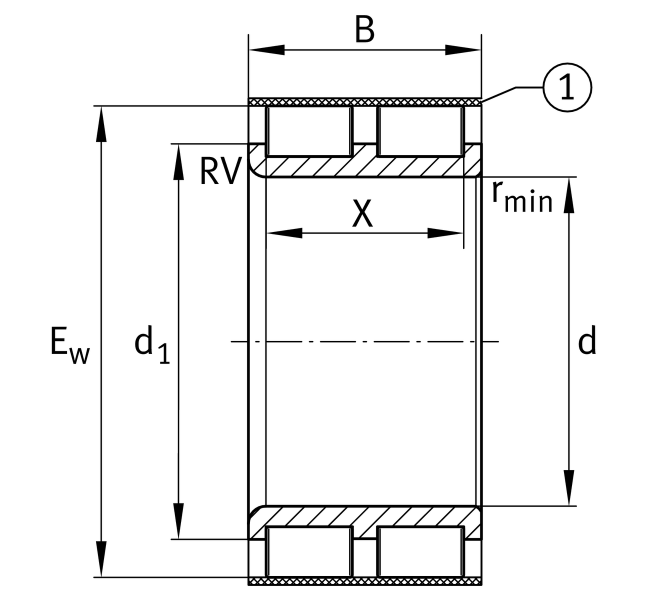

Main Dimensions & Performance Data
d
60 mm
Rib diameter inner ring
Ew
86.74 mm
B
50 mm
Width
Cr
212,000 N
Basic dynamic load rating, radial
C0r
285,000 N
Basic static load rating, radial
Cur
48,500 N
Fatigue load limit, radial
CG
4,350 1/min
Limiting speed
nϑr
2,180 1/min
Reference speed
≈m
0.83 kg
Weight

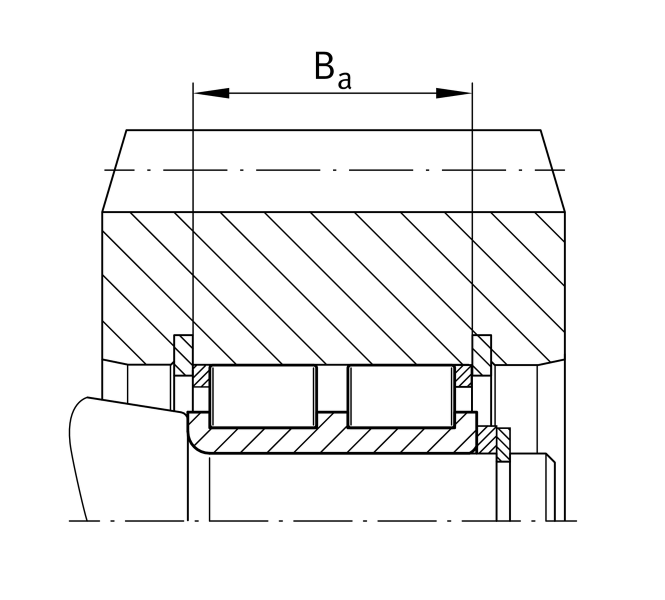

Mounting dimensions
da min
71.5 mm
Minimum diameter shaft shoulder
