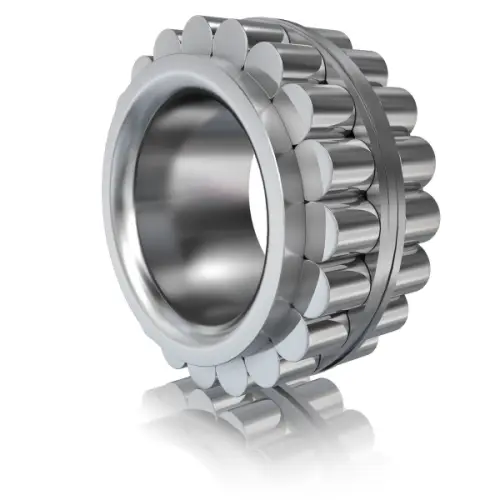

INA RSL60x86,74×55-XL-RV-DP
Cylindrical Roller Bearings
RSL in special dimensions, full complement roller set, two-row, semi-locating bearing, no outer ring, 3 ribs on inner ring, 2 thrust washers, Retaining Rings, edge radius RV on one side,typ RSL18
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

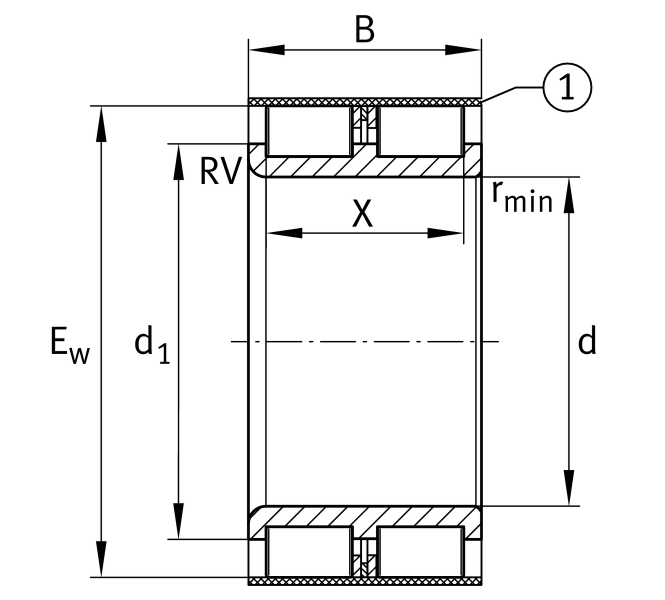

Main Dimensions & Performance Data
d
60 mm
Rib diameter inner ring
Ew
86.74 mm
B
55 mm
Width
Cr
243,000 N
Basic dynamic load rating, radial
C0r
340,000 N
Basic static load rating, radial
Cur
59,000 N
Fatigue load limit, radial
CG
4,350 1/min
Limiting speed
nϑr
2,180 1/min
Reference speed
≈m
0.94 kg
Weight

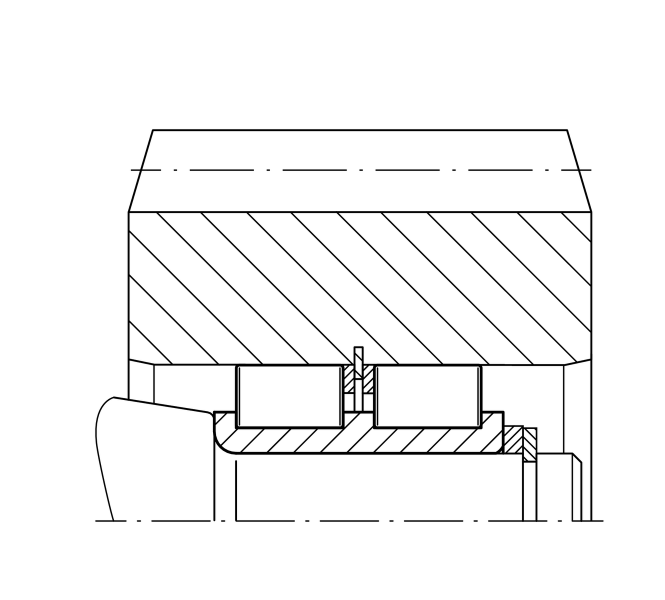

Mounting dimensions
da min
71.5 mm
Minimum diameter shaft shoulder
