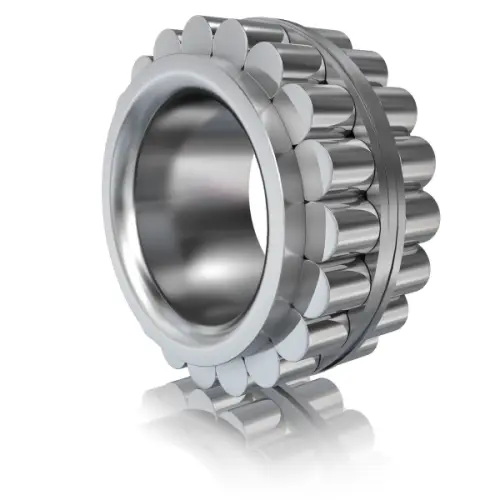

INA RSL70x100,28×62-XL-RV-DP
Cylindrical Roller Bearings
RSL in special dimensions, full complement roller set, two-row, semi-locating bearing, no outer ring, 3 ribs on inner ring, 2 thrust washers, Retaining Rings, edge radius RV on one side,typ RSL18
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
70 mm
Rib diameter inner ring
Ew
100.28 mm
B
62 mm
Width
Cr
325,000 N
Basic dynamic load rating, radial
C0r
455,000 N
Basic static load rating, radial
Cur
81,000 N
Fatigue load limit, radial
CG
3,750 1/min
Limiting speed
nϑr
1,880 1/min
Reference speed
≈m
1.36 kg
Weight

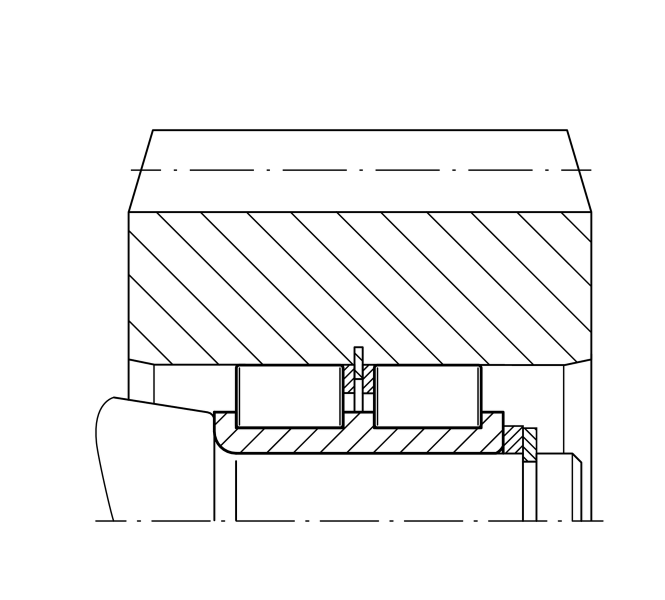

Mounting dimensions
da min
81 mm
Minimum diameter shaft shoulder
