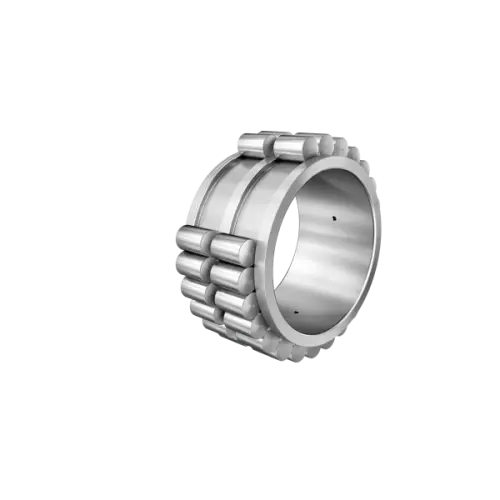

INA RSL70x95,29×54-XL-RV
Cylindrical Roller Bearings
RSL in special dimensions, full complement roller set, two-row, semi-locating bearing, no outer ring, 3 ribs on inner ring, edge radius RV on one side, type RSL
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

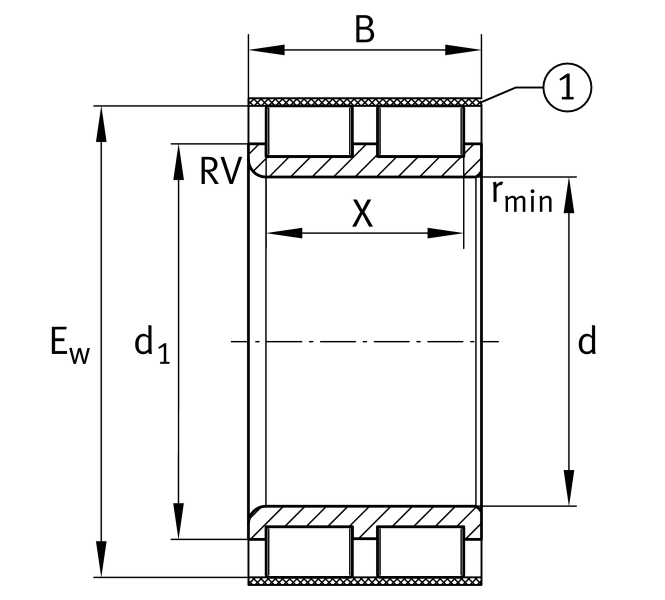

Main Dimensions & Performance Data
d
70 mm
Rib diameter inner ring
Ew
95.29 mm
B
54 mm
Width
Cr
228,000 N
Basic dynamic load rating, radial
C0r
335,000 N
Basic static load rating, radial
Cur
60,000 N
Fatigue load limit, radial
CG
3,850 1/min
Limiting speed
nϑr
1,930 1/min
Reference speed
≈m
0.98 kg
Weight

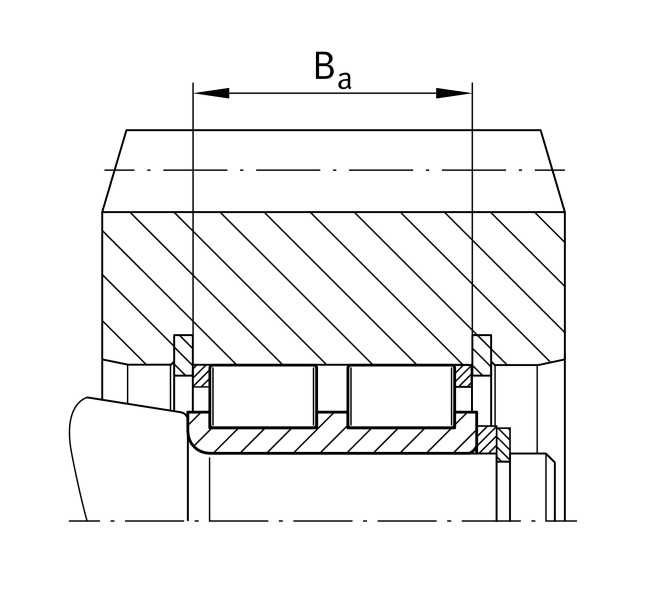

Mounting dimensions
da min
82 mm
Minimum diameter shaft shoulder
