INA RSRA15-90-L0
Insert Ball Bearings and Belt Tension Pulleys
Idler pulley units RSRA..-L0
(BRAND)：INA
(Availability)：In Stock

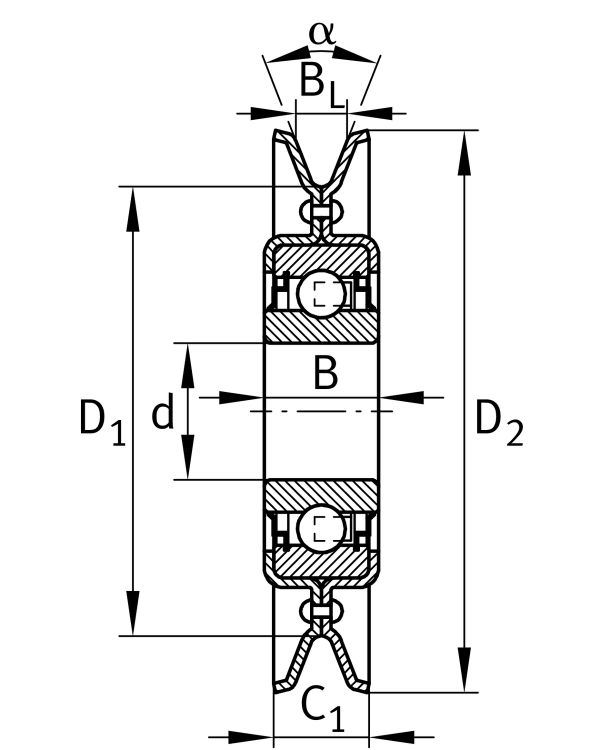

Main Dimensions & Performance Data
d
15 mm
Bore diameter
d
0.08 mm
Upper tolerance
d
-0.05 mm
Lower tolerance
D1
61.6 mm
Raceway diameter idler pulley
C1
20 mm
Width idler pulley
Cr
7,600 N
Basic dynamic load rating, radial
C0r
3,700 N
Basic static load rating, radial
Cur
193 N
Fatigue load limit, radial
≈m
0.22 kg
Weight
Mounting dimensions
a
32 u00B0
Angle idler pulley raceway
8, 10, (12,5)
Vee belt size
