INA RSRB16-222-L0-FA125
Insert Ball Bearings and Belt Tension Pulleys
Idler pulley units RSRB..-L0
(BRAND)：INA
(Availability)：In Stock

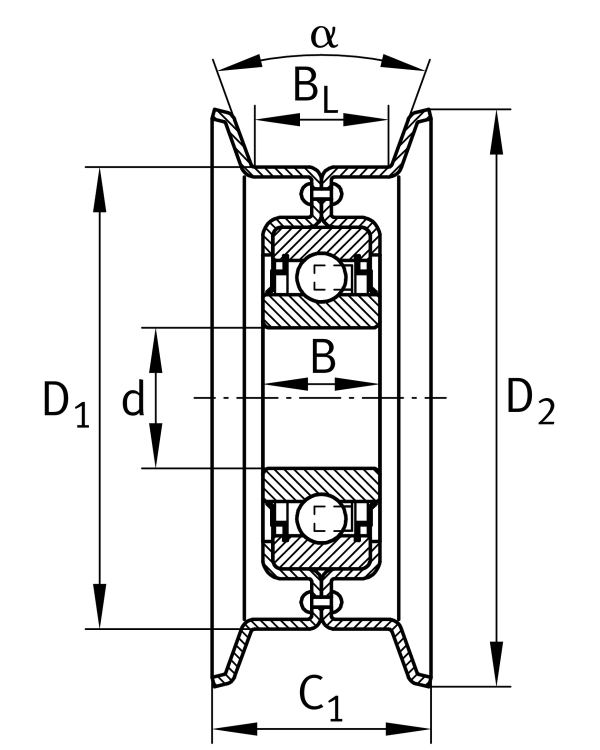

Main Dimensions & Performance Data
d
16.2 mm
Bore diameter
d
0.1 mm
Upper tolerance
d
0 mm
Lower tolerance
D1
203.2 mm
Raceway diameter idler pulley
C1
48.4 mm
Width idler pulley
Cr
9,800 N
Basic dynamic load rating, radial
C0r
4,750 N
Basic static load rating, radial
Cur
219 N
Fatigue load limit, radial
≈m
1.31 kg
Weight
Mounting dimensions
a
10 u00B0
Angle idler pulley raceway
