INA RSRD20-160-L0
Insert Ball Bearings and Belt Tension Pulleys
Belt tension pulleys RSRD..-L0, for round belts, steel cables and hemp ropes
(BRAND)：INA
(Availability)：In Stock

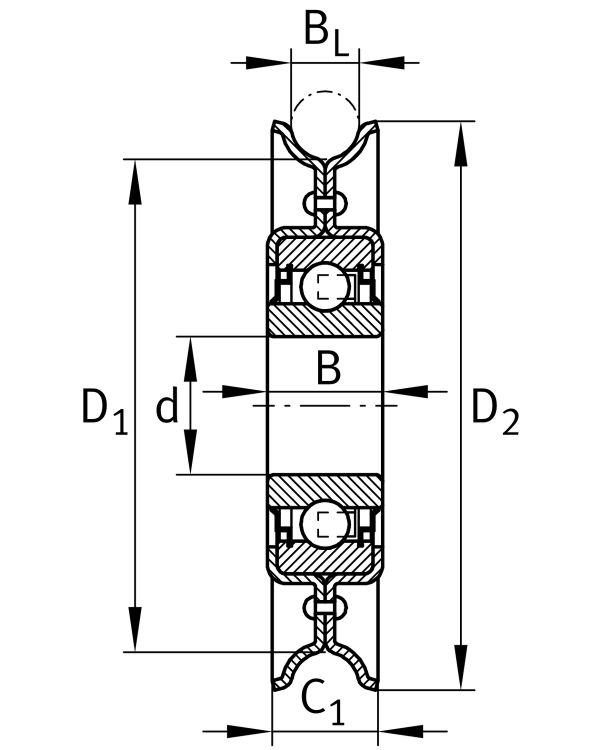

Main Dimensions & Performance Data
d
20 mm
Bore diameter
d
0 mm
Upper tolerance
d
-0.01 mm
Lower tolerance
D1
136.5 mm
Raceway diameter idler pulley
C1
17.5 mm
Width idler pulley
Cr
12,800 N
Basic dynamic load rating, radial
C0r
6,600 N
Basic static load rating, radial
Cur
345 N
Fatigue load limit, radial
≈m
0.61 kg
Weight
