INA SL014918
Cylindrical Roller Bearings

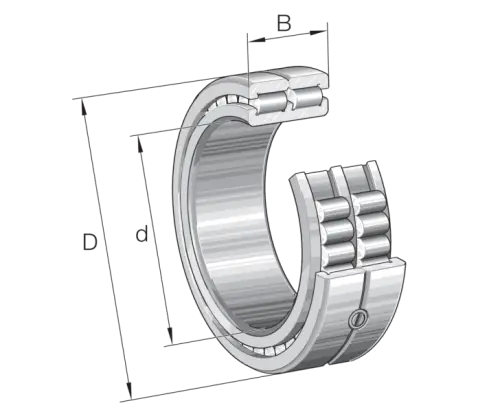

Cylindrical roller bearings SL0149, locating bearing, double row, full complement cylindrical roller set, dimension series 49
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

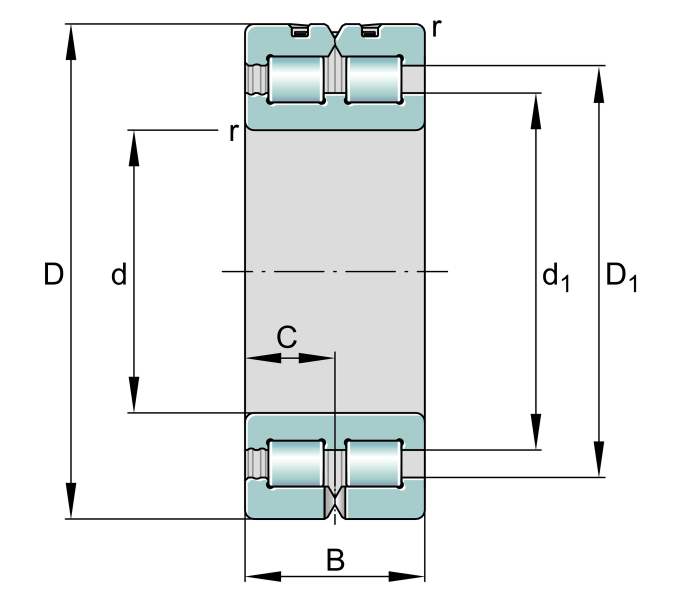

Main Dimensions & Performance Data
d
90 mm
Bore diameter
D
125 mm
Outside diameter
B
35 mm
Width
Cr
153,000 N
Basic dynamic load rating, radial
C0r
290,000 N
Basic static load rating, radial
Cur
39,500 N
Fatigue load limit, radial
CG
3,050 1/min
Limiting speed
nϑr
1,870 1/min
Reference speed
≈m
1.317 kg
Weight

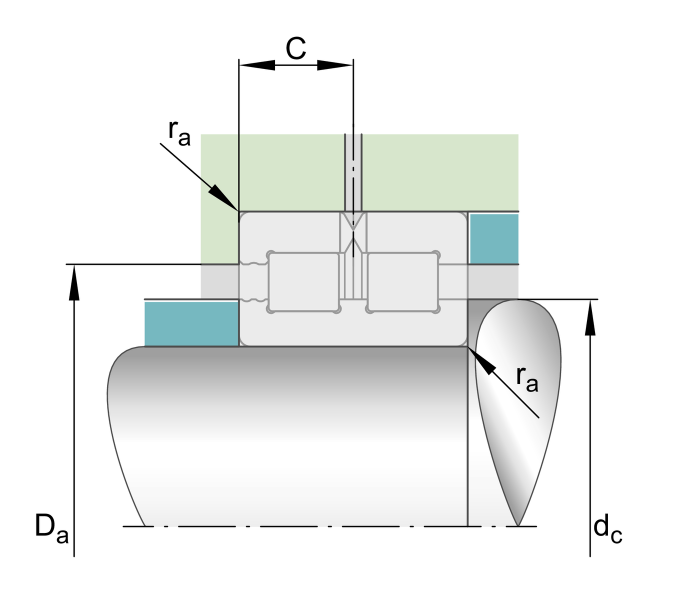

Mounting dimensions
ra max
1.1 mm
Maximum recess radius
da min
103.9 mm
Minimum diameter shaft shoulder
Da max
111 mm
Maximum diameter of housing shoulder
