INA SL014922
Cylindrical Roller Bearings
Cylindrical roller bearings SL0149, locating bearing, double row, full complement cylindrical roller set, dimension series 49
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

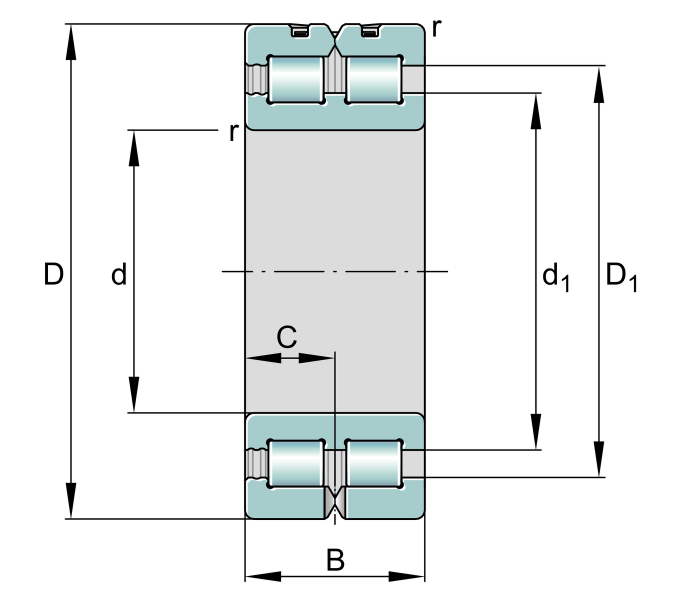

Main Dimensions & Performance Data
d
110 mm
Bore diameter
D
150 mm
Outside diameter
B
40 mm
Width
Cr
198,000 N
Basic dynamic load rating, radial
C0r
400,000 N
Basic static load rating, radial
Cur
51,000 N
Fatigue load limit, radial
CG
2,500 1/min
Limiting speed
nϑr
1,600 1/min
Reference speed
≈m
2.092 kg
Weight

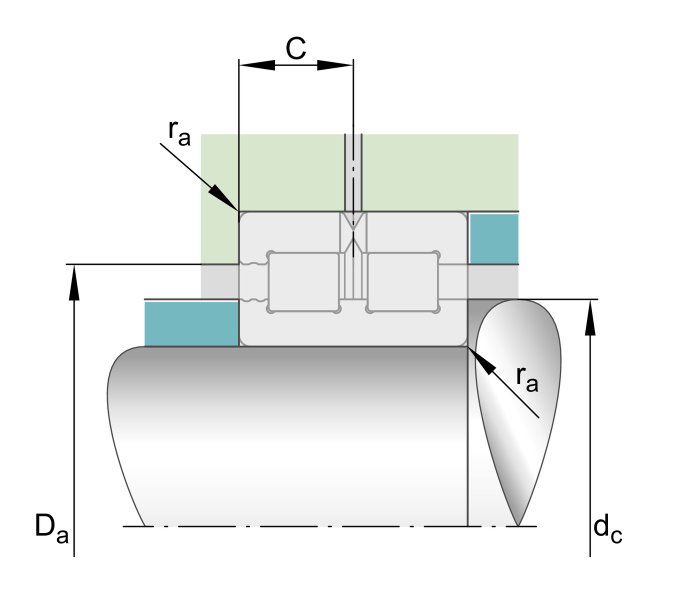

Mounting dimensions
ra max
1.1 mm
Maximum recess radius
da min
125 mm
Minimum diameter shaft shoulder
Da max
134 mm
Maximum diameter of housing shoulder
