INA SL014928
Cylindrical Roller Bearings
Cylindrical roller bearings SL0149, locating bearing, double row, full complement cylindrical roller set, dimension series 49
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

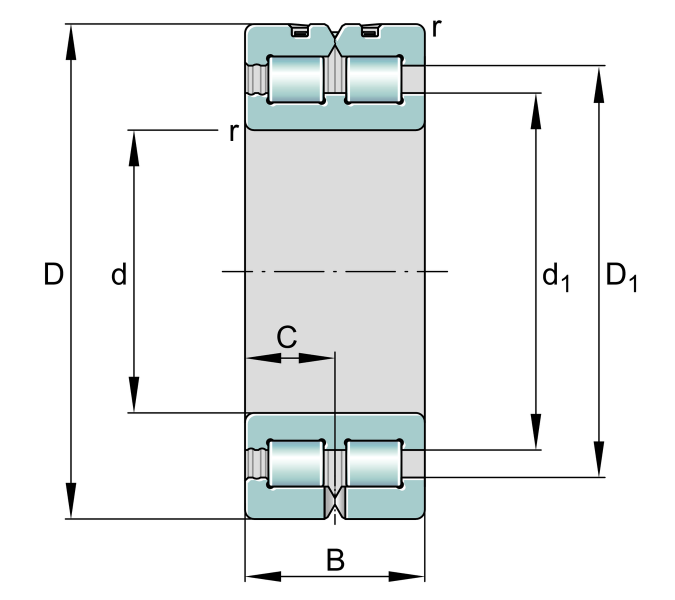

Main Dimensions & Performance Data
d
140 mm
Bore diameter
D
190 mm
Outside diameter
B
50 mm
Width
Cr
270,000 N
Basic dynamic load rating, radial
C0r
550,000 N
Basic static load rating, radial
Cur
67,000 N
Fatigue load limit, radial
CG
1,950 1/min
Limiting speed
nϑr
1,370 1/min
Reference speed
≈m
4.057 kg
Weight

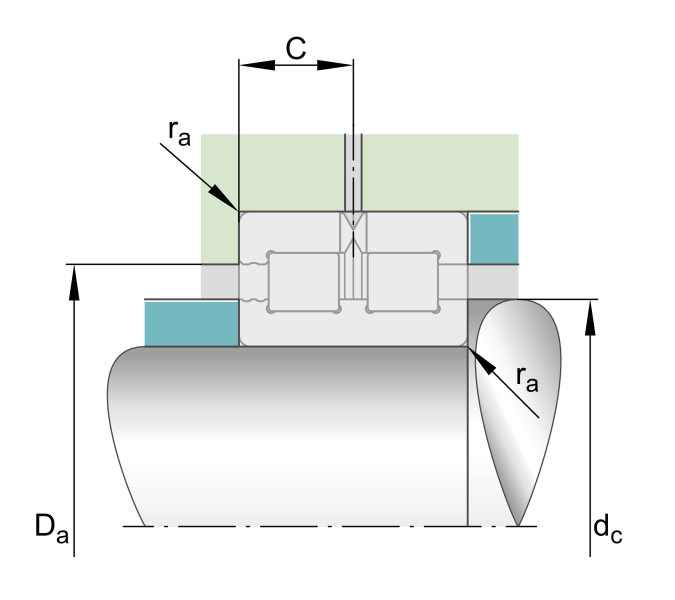

Mounting dimensions
ra max
1.5 mm
Maximum recess radius
da min
159 mm
Minimum diameter shaft shoulder
Da max
170.5 mm
Maximum diameter of housing shoulder
