INA SL014930

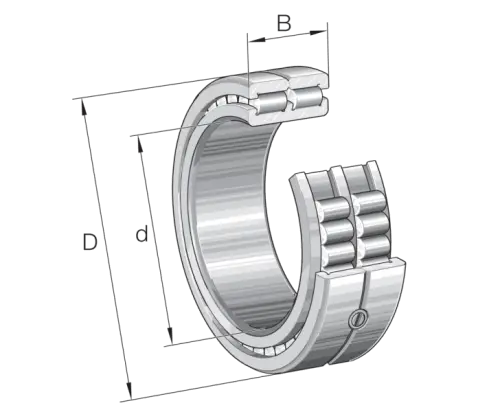

Cylindrical Roller Bearings
Cylindrical roller bearings SL0149, locating bearing, double row, full complement cylindrical roller set, dimension series 49
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

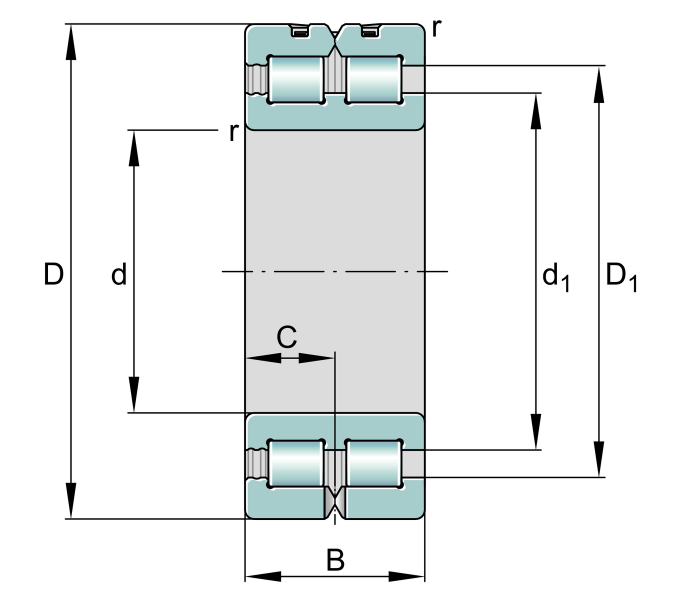

Main Dimensions & Performance Data
d
150 mm
Bore diameter
D
210 mm
Outside diameter
B
60 mm
Width
Cr
410,000 N
Basic dynamic load rating, radial
C0r
820,000 N
Basic static load rating, radial
Cur
105,000 N
Fatigue load limit, radial
CG
1,790 1/min
Limiting speed
nϑr
1,200 1/min
Reference speed
≈m
6.35 kg
Weight

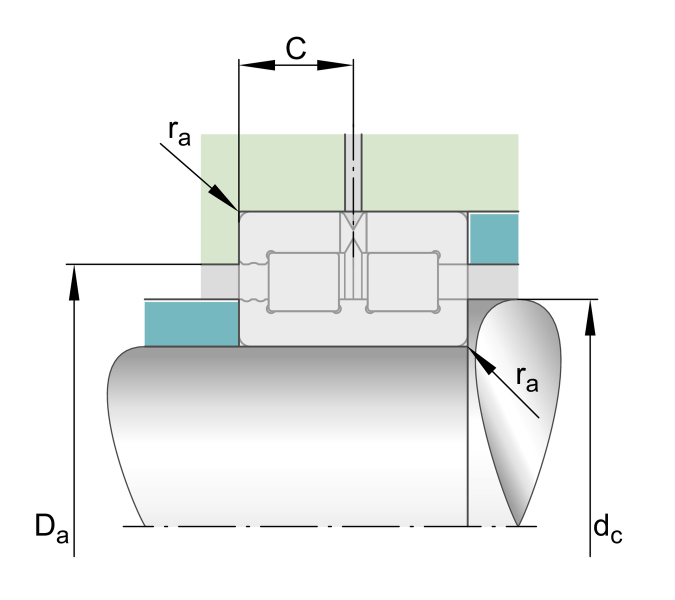

Mounting dimensions
ra max
2 mm
Maximum recess radius
da min
171.8 mm
Minimum diameter shaft shoulder
Da max
187.5 mm
Maximum diameter of housing shoulder
