INA SL014964
Cylindrical Roller Bearings

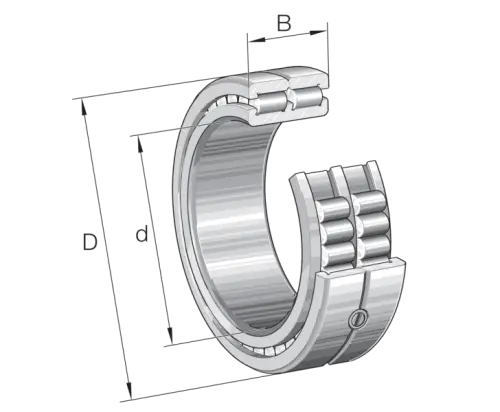

Cylindrical roller bearings SL0149, locating bearing, double row, full complement cylindrical roller set, dimension series 49
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

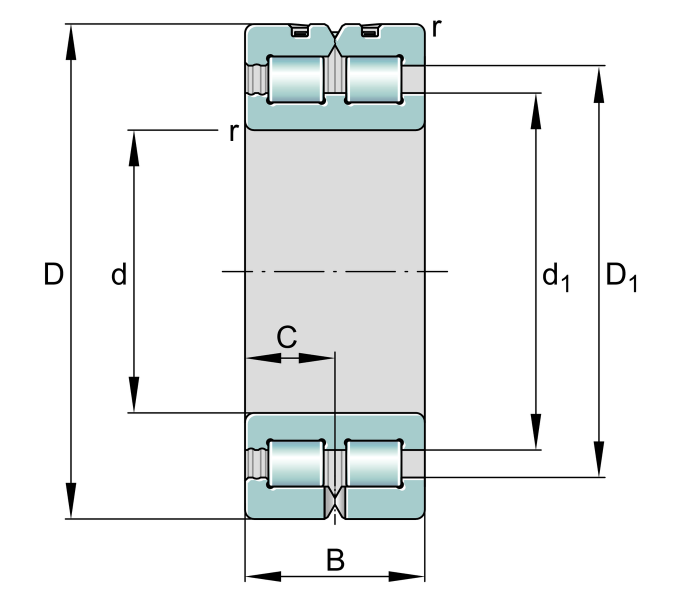

Main Dimensions & Performance Data
d
320 mm
Bore diameter
D
440 mm
Outside diameter
B
118 mm
Width
Cr
1,700,000 N
Basic dynamic load rating, radial
C0r
4,050,000 N
Basic static load rating, radial
Cur
435,000 N
Fatigue load limit, radial
CG
800 1/min
Limiting speed
nϑr
395 1/min
Reference speed
≈m
53.95 kg
Weight
Mounting dimensions
ra max
3 mm
Maximum recess radius
da min
367.5 mm
Minimum diameter shaft shoulder
Da max
401.5 mm
Maximum diameter of housing shoulder
