INA SL014968
Cylindrical Roller Bearings
Cylindrical roller bearings SL0149, locating bearing, double row, full complement cylindrical roller set, dimension series 49
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
340 mm
Bore diameter
D
460 mm
Outside diameter
B
118 mm
Width
Cr
1,750,000 N
Basic dynamic load rating, radial
C0r
4,250,000 N
Basic static load rating, radial
Cur
450,000 N
Fatigue load limit, radial
CG
770 1/min
Limiting speed
nϑr
375 1/min
Reference speed
≈m
58.3 kg
Weight

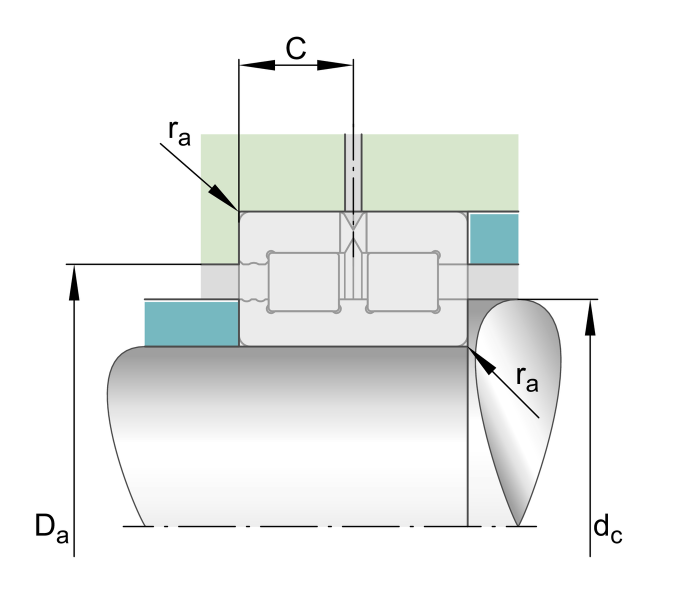

Mounting dimensions
ra max
3 mm
Maximum recess radius
da min
385.3 mm
Minimum diameter shaft shoulder
Da max
419 mm
Maximum diameter of housing shoulder
