INA SL024872
Cylindrical Roller Bearings

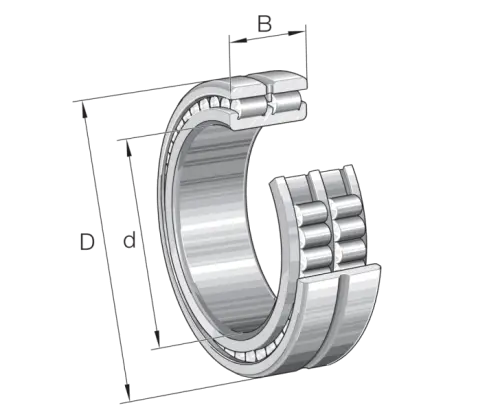

Cylindrical roller bearing SL02..-A, full complement roller set, two-row, non-locating bearing, 0 ribs on outer ring (smooth), 3 ribs on inner ring, type SL02
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

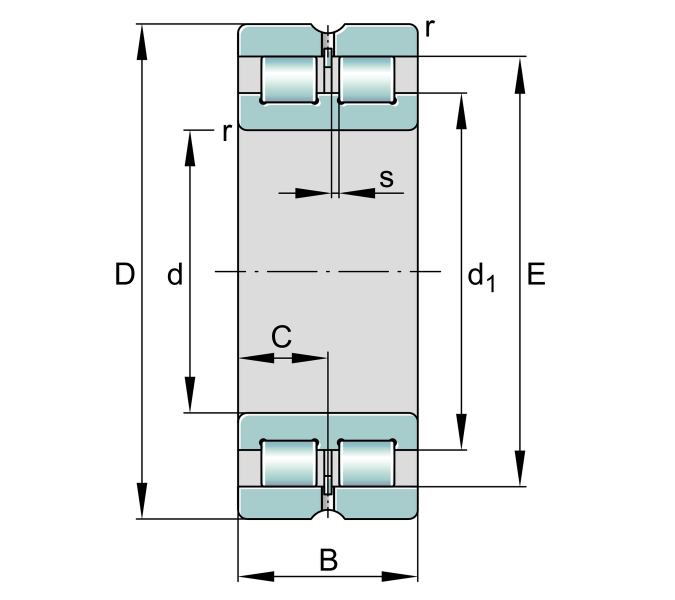

Main Dimensions & Performance Data
d
360 mm
Bore diameter
D
440 mm
Outside diameter
B
80 mm
Width
Cr
900,000 N
Basic dynamic load rating, radial
C0r
2,480,000 N
Basic static load rating, radial
Cur
260,000 N
Fatigue load limit, radial
CG
770 1/min
Limiting speed
nϑr
430 1/min
Reference speed
≈m
26 kg
Weight

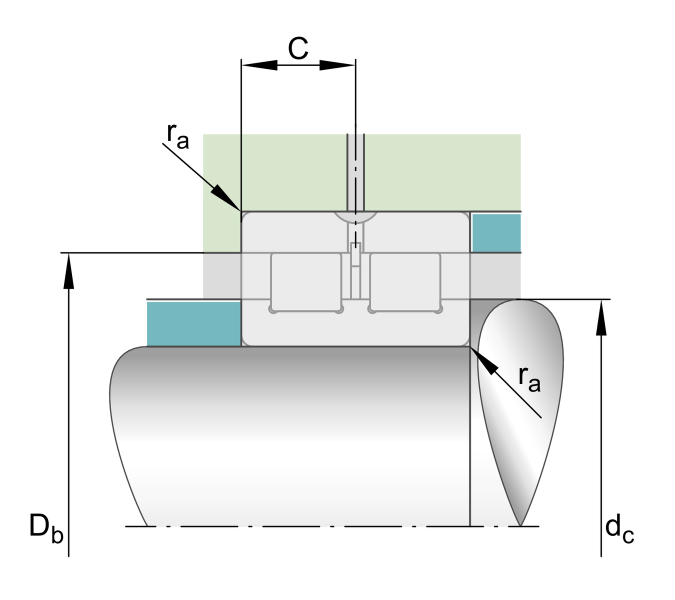

Mounting dimensions
d min
391 mm
Minimum shaft shoulder
da min
391 mm
Minimum diameter shaft shoulder
De min
419.5 mm
Minimum diameter of housing shoulder
ra max
2.1 mm
Maximum recess radius
