INA SL024928
Cylindrical Roller Bearings
Cylindrical roller bearing SL02..-A, full complement roller set, two-row, non-locating bearing, 0 ribs on outer ring (smooth), 3 ribs on inner ring, type SL02
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

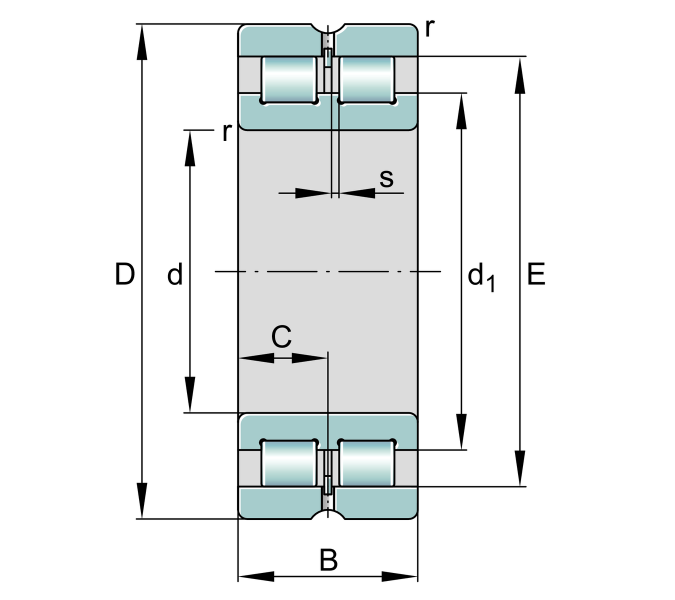

Main Dimensions & Performance Data
d
140 mm
Bore diameter
D
190 mm
Outside diameter
B
50 mm
Width
Cr
270,000 N
Basic dynamic load rating, radial
C0r
550,000 N
Basic static load rating, radial
Cur
67,000 N
Fatigue load limit, radial
CG
1,950 1/min
Limiting speed
nϑr
1,370 1/min
Reference speed
≈m
3.945 kg
Weight

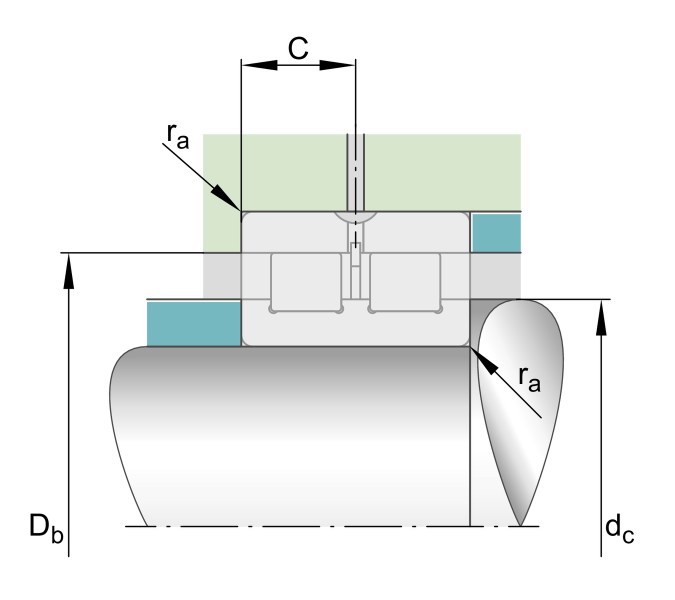

Mounting dimensions
d min
160 mm
Minimum shaft shoulder
da min
160 mm
Minimum diameter shaft shoulder
De min
175.5 mm
Minimum diameter of housing shoulder
ra max
1.5 mm
Maximum recess radius
