INA SL024996-A-C3
Cylindrical Roller Bearings

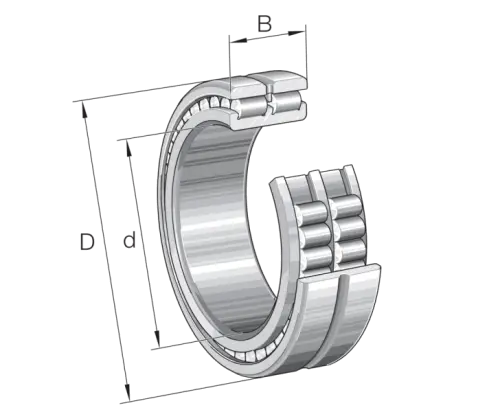

Cylindrical roller bearing SL02..-A, full complement roller set, two-row, non-locating bearing, 0 ribs on outer ring (smooth), 3 ribs on inner ring, type SL02
(BRAND)：INA
(Availability)：In Stock

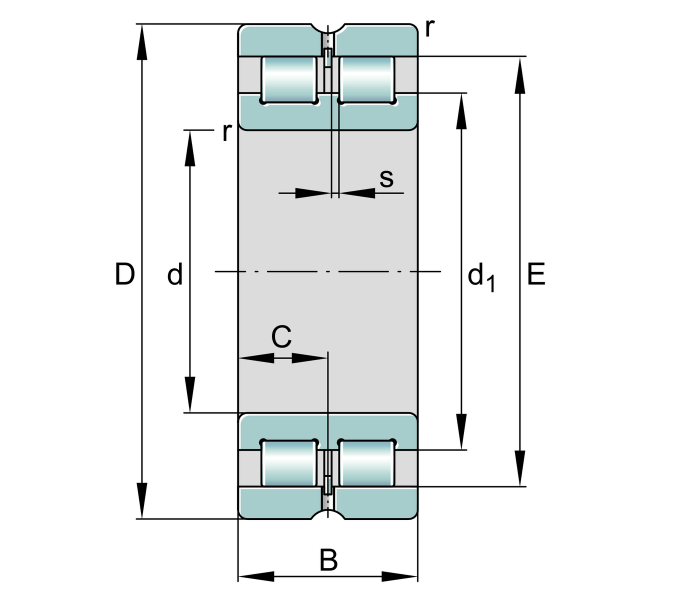

Main Dimensions & Performance Data
d
480 mm
Bore diameter
D
650 mm
Outside diameter
B
170 mm
Width
Cr
3,450,000 N
Basic dynamic load rating, radial
C0r
8,800,000 N
Basic static load rating, radial
Cur
870,000 N
Fatigue load limit, radial
CG
540 1/min
Limiting speed
nϑr
227 1/min
Reference speed
≈m
162.77 kg
Weight

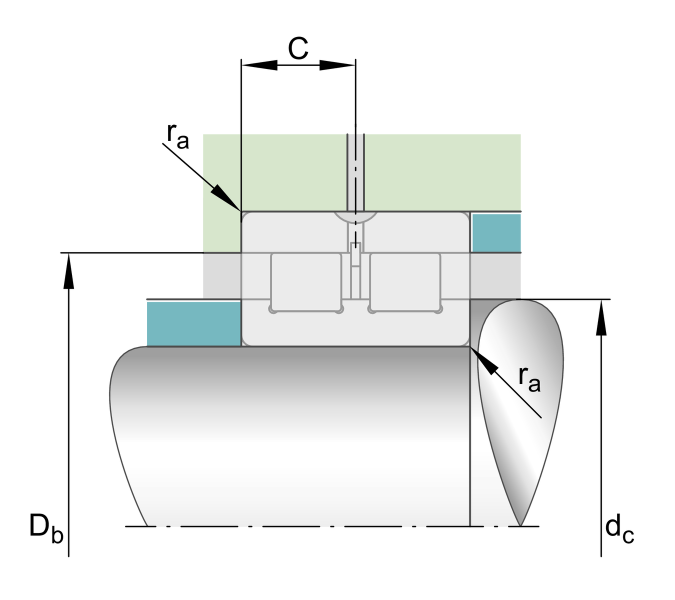

Mounting dimensions
d min
537.5 mm
Minimum shaft shoulder
da min
537.4 mm
Minimum diameter shaft shoulder
De min
601.5 mm
Minimum diameter of housing shoulder
ra max
5 mm
Maximum recess radius
