INA SL045005-PP-2NR
Cylindrical Roller Bearings

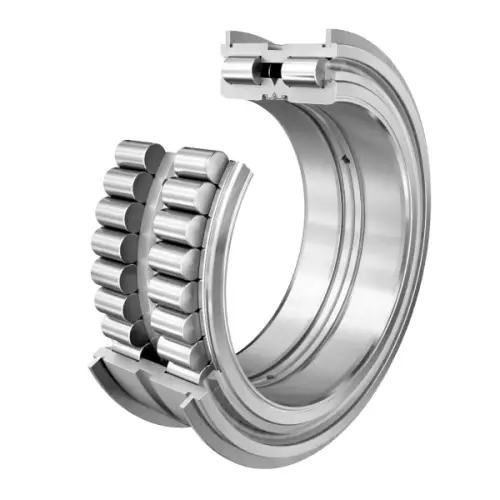

Cylindrical roller bearing SL04..-PP-2NR, full complement roller set, two-row, locating bearing, central rib on outer ring, 3 ribs on inner ring, type SL04
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
25 mm
Bore diameter
D
47 mm
Outside diameter
B
30 mm
Width
Cr
46,000 N
Basic dynamic load rating, radial
C0r
60,000 N
Basic static load rating, radial
Cur
8,300 N
Fatigue load limit, radial
nG Grease
4,700 1/min
Limiting speed for grease lubrication
≈m
230.2 g
Weight
Mounting dimensions
Ca1
21.5 mm
Mounting dim for snap ring WRE (not included in delivery) Tolerance: 0/-0,2
Ca2
21 mm
Mounting dim for retaining ring to DIN 471 (not incl. In delivery) Tol: 0/-0,2
d1
35.5 mm
Rib diameter inner ring
d2
39 mm
Sealing diameter (rib)
d3
52 mm
Outside diameter of snap ring WRE
d1 min
35.5 mm
Minimum diameter shaft shoulder
30 u00B0
Chamfer angle
-0.2 mm
Lower distance snap ring tolerance
-0.2 mm
Lower distance retaining ring tolerance
0 mm
Upper distance snap ring tolerance
0 mm
Upper distance retaining ring tolerance
0 mm
Lower distance ring groove tolerance
0.2 mm
Upper distance ring groove tolerance
