INA SL045018-D
Cylindrical Roller Bearings

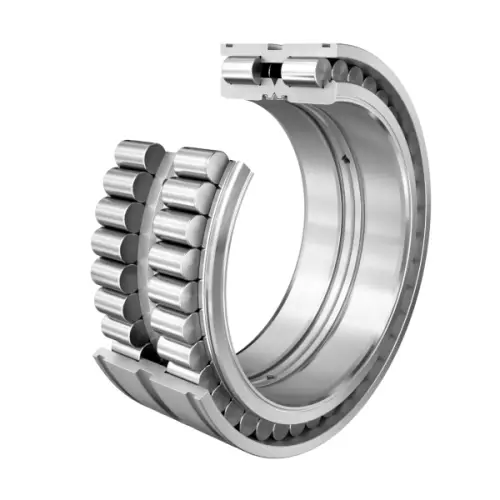

Cylindrical roller bearing SL04..-D, full complement roller set, two-row, locating bearing, central rib on outer ring, 3 ribs on inner ring, type SL04
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
90 mm
Bore diameter
D
140 mm
Outside diameter
B
67 mm
Width
Cr
305,000 N
Basic dynamic load rating, radial
C0r
510,000 N
Basic static load rating, radial
Cur
70,000 N
Fatigue load limit, radial
nG Grease
1,410 1/min
Limiting speed for grease lubrication
≈m
3.53 kg
Weight

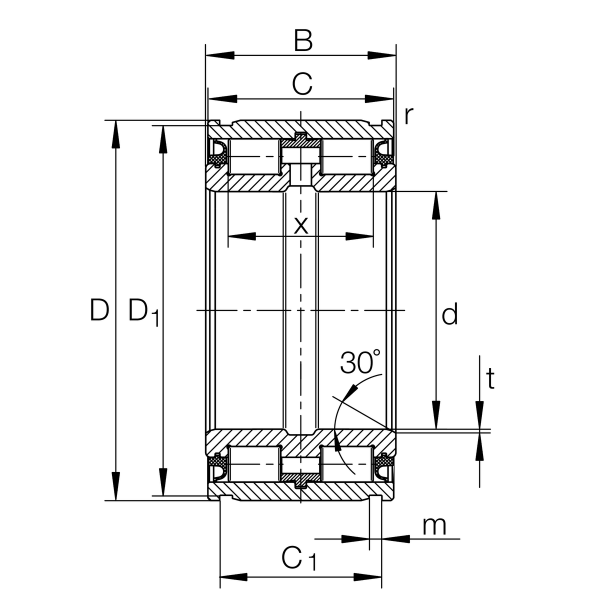

Mounting dimensions
Ca1
54 mm
Mounting dim for snap ring WRE (not included in delivery) Tolerance: 0/-0,2
Ca2
51 mm
Mounting dim for retaining ring to DIN 471 (not incl. In delivery) Tol: 0/-0,2
d1
109.5 mm
Rib diameter inner ring
d2
118 mm
Sealing diameter (rib)
d3
152 mm
Outside diameter of snap ring WRE
d1 min
109.5 mm
Minimum diameter shaft shoulder
30 u00B0
Chamfer angle
-0.2 mm
Lower distance snap ring tolerance
-0.2 mm
Lower distance retaining ring tolerance
0 mm
Upper distance snap ring tolerance
0 mm
Upper distance retaining ring tolerance
0 mm
Lower distance ring groove tolerance
0.2 mm
Upper distance ring groove tolerance
