INA SL045022-D-PP
Cylindrical Roller Bearings

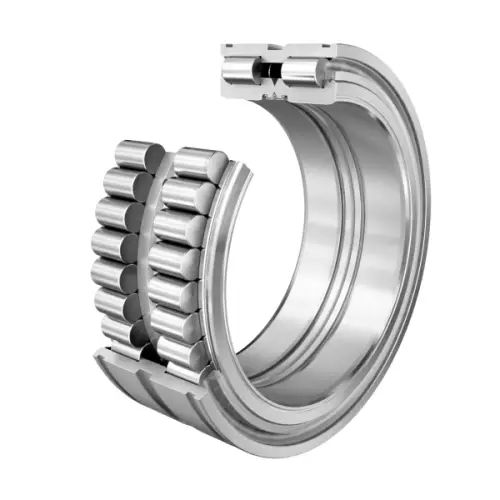

Cylindrical roller bearing SL04..-D-PP, full complement roller set, two-row, locating bearing, central rib on outer ring, 3 ribs on inner ring, type SL04
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

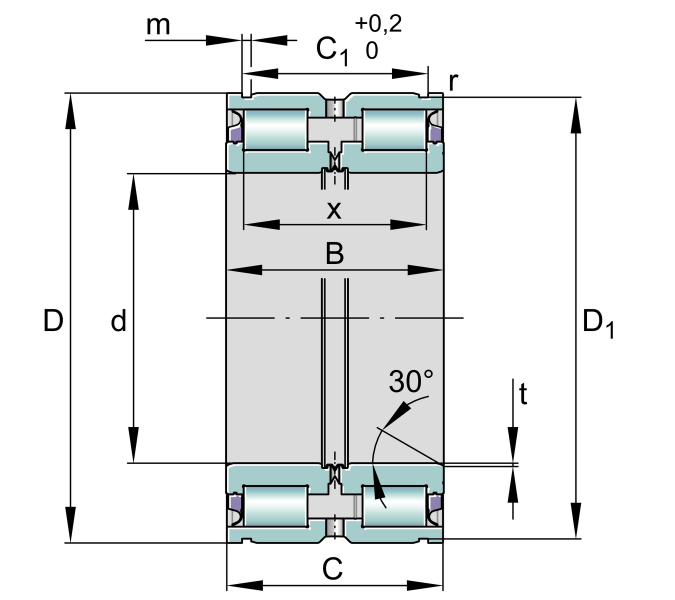

Main Dimensions & Performance Data
d
110 mm
Bore diameter
D
170 mm
Outside diameter
B
80 mm
Width
Cr
395,000 N
Basic dynamic load rating, radial
C0r
680,000 N
Basic static load rating, radial
Cur
96,000 N
Fatigue load limit, radial
nG Grease
1,170 1/min
Limiting speed for grease lubrication
≈m
6.27 kg
Weight
Mounting dimensions
Ca1
65 mm
Mounting dim for snap ring WRE (not included in delivery) Tolerance: 0/-0,2
Ca2
62 mm
Mounting dim for retaining ring to DIN 471 (not incl. In delivery) Tol: 0/-0,2
d1
132 mm
Rib diameter inner ring
d2
143 mm
Sealing diameter (rib)
d3
182 mm
Outside diameter of snap ring WRE
d1 min
132 mm
Minimum diameter shaft shoulder
30 u00B0
Chamfer angle
-0.2 mm
Lower distance snap ring tolerance
-0.2 mm
Lower distance retaining ring tolerance
0 mm
Upper distance snap ring tolerance
0 mm
Upper distance retaining ring tolerance
0 mm
Lower distance ring groove tolerance
0.2 mm
Upper distance ring groove tolerance
