INA SL045026-D-PP-2NR
Cylindrical Roller Bearings

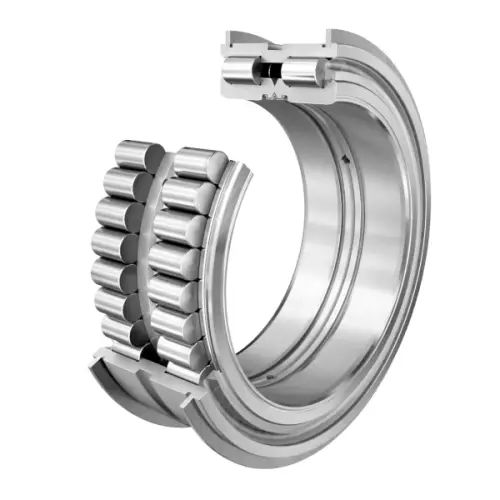

Cylindrical roller bearing SL04..-D-PP-2NR, full complement roller set, two-row, locating bearing, central rib on outer ring, 3 ribs on inner ring, type SL04
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
130 mm
Bore diameter
D
200 mm
Outside diameter
B
95 mm
Width
Cr
540,000 N
Basic dynamic load rating, radial
C0r
960,000 N
Basic static load rating, radial
Cur
130,000 N
Fatigue load limit, radial
nG Grease
960 1/min
Limiting speed for grease lubrication
≈m
10.45 kg
Weight
Mounting dimensions
Ca1
77 mm
Mounting dim for snap ring WRE (not included in delivery) Tolerance: 0/-0,2
Ca2
75 mm
Mounting dim for retaining ring to DIN 471 (not incl. In delivery) Tol: 0/-0,2
d1
157 mm
Rib diameter inner ring
d2
170 mm
Sealing diameter (rib)
d3
216 mm
Outside diameter of snap ring WRE
d1 min
157 mm
Minimum diameter shaft shoulder
30 u00B0
Chamfer angle
-0.2 mm
Lower distance snap ring tolerance
-0.2 mm
Lower distance retaining ring tolerance
0 mm
Upper distance snap ring tolerance
0 mm
Upper distance retaining ring tolerance
0 mm
Lower distance ring groove tolerance
0.2 mm
Upper distance ring groove tolerance
