INA SL045032-D-PP
Cylindrical Roller Bearings

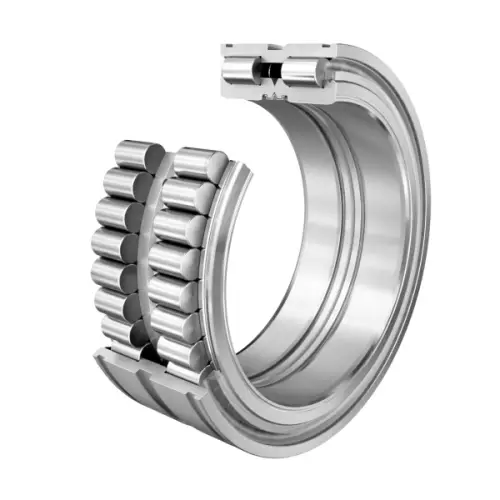

Cylindrical roller bearing SL04..-D-PP, full complement roller set, two-row, locating bearing, central rib on outer ring, 3 ribs on inner ring, type SL04
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

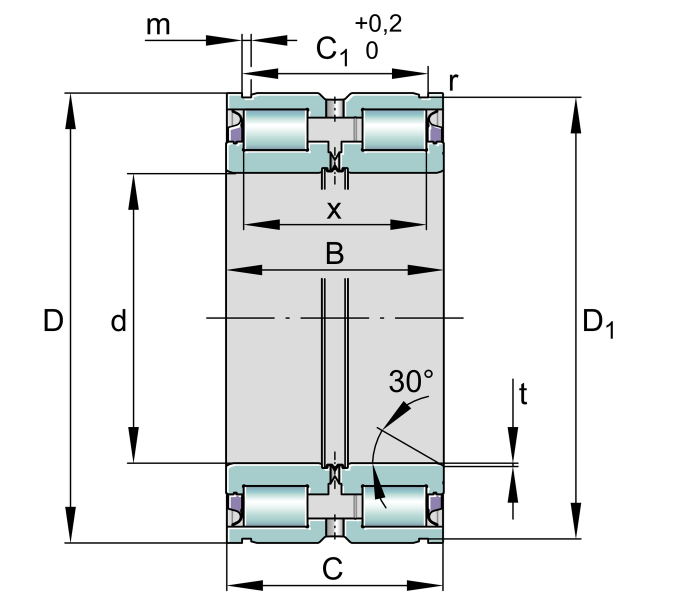

Main Dimensions & Performance Data
d
160 mm
Bore diameter
D
240 mm
Outside diameter
B
109 mm
Width
Cr
740,000 N
Basic dynamic load rating, radial
C0r
1,360,000 N
Basic static load rating, radial
Cur
176,000 N
Fatigue load limit, radial
nG Grease
790 1/min
Limiting speed for grease lubrication
≈m
15.978 kg
Weight

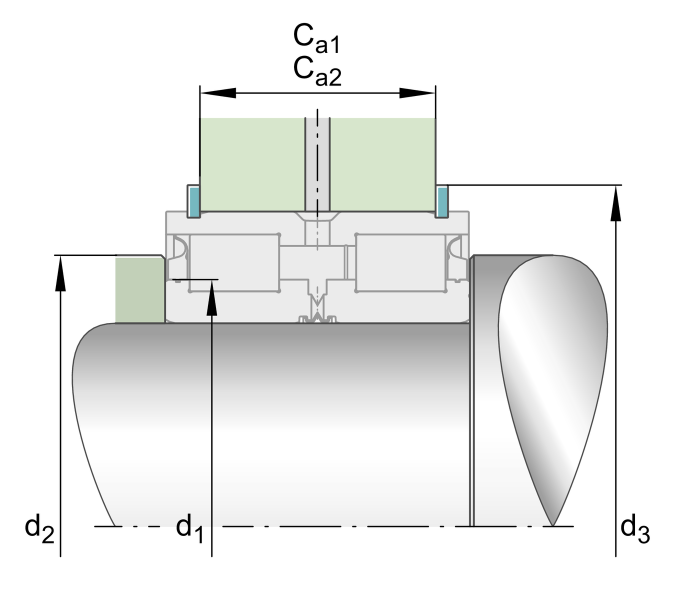

Mounting dimensions
Ca1
89 mm
Mounting dim for snap ring WRE (not included in delivery) Tolerance: 0/-0,2
Ca2
85 mm
Mounting dim for retaining ring to DIN 471 (not incl. In delivery) Tol: 0/-0,2
d1
189 mm
Rib diameter inner ring
d2
207 mm
Sealing diameter (rib)
d3
260 mm
Outside diameter of snap ring WRE
d1 min
189.5 mm
Minimum diameter shaft shoulder
30 u00B0
Chamfer angle
-0.2 mm
Lower distance snap ring tolerance
-0.2 mm
Lower distance retaining ring tolerance
0 mm
Upper distance snap ring tolerance
0 mm
Upper distance retaining ring tolerance
0 mm
Lower distance ring groove tolerance
0.2 mm
Upper distance ring groove tolerance
