INA SL045044-D-PP
Cylindrical Roller Bearings

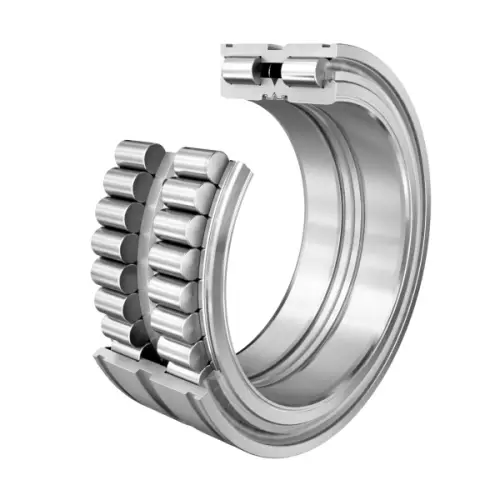

Cylindrical roller bearing SL04..-D-PP, full complement roller set, two-row, locating bearing, central rib on outer ring, 3 ribs on inner ring, type SL04
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

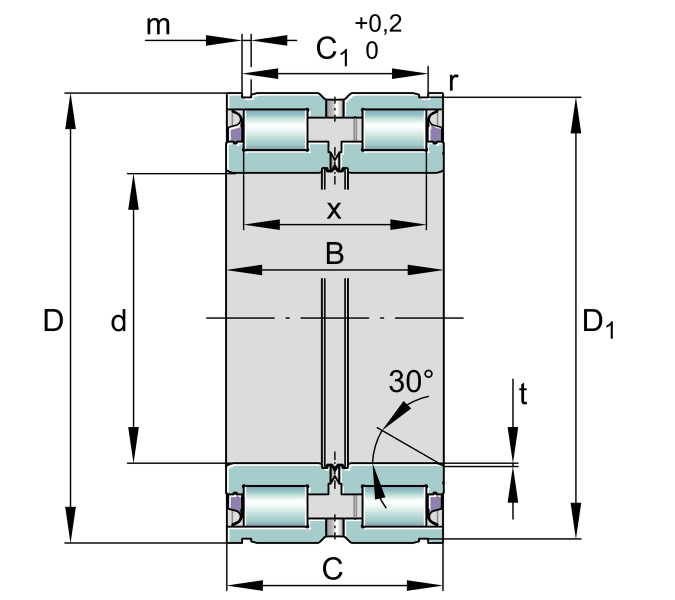

Main Dimensions & Performance Data
d
220 mm
Bore diameter
D
340 mm
Outside diameter
B
160 mm
Width
Cr
1,570,000 N
Basic dynamic load rating, radial
C0r
3,050,000 N
Basic static load rating, radial
Cur
370,000 N
Fatigue load limit, radial
nG Grease
560 1/min
Limiting speed for grease lubrication
≈m
51.025 kg
Weight

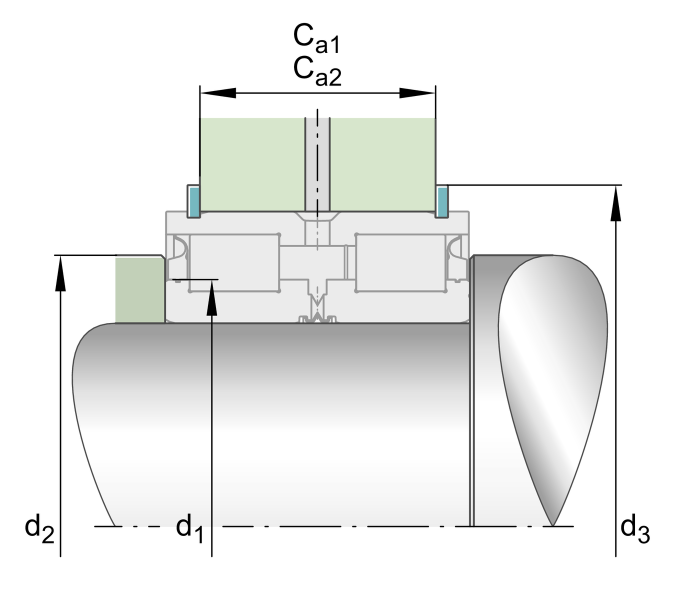

Mounting dimensions
Ca1
130 mm
Mounting dim for snap ring WRE (not included in delivery) Tolerance: 0/-0,2
Ca2
126 mm
Mounting dim for retaining ring to DIN 471 (not incl. In delivery) Tol: 0/-0,2
d1
260 mm
Rib diameter inner ring
d2
286 mm
Sealing diameter (rib)
d3
366 mm
Outside diameter of snap ring WRE
d1 min
260.5 mm
Minimum diameter shaft shoulder
30 u00B0
Chamfer angle
-0.2 mm
Lower distance snap ring tolerance
-0.2 mm
Lower distance retaining ring tolerance
0 mm
Upper distance snap ring tolerance
0 mm
Upper distance retaining ring tolerance
0 mm
Lower distance ring groove tolerance
0.2 mm
Upper distance ring groove tolerance
