INA SL045060-D-PP-2NR
Cylindrical Roller Bearings

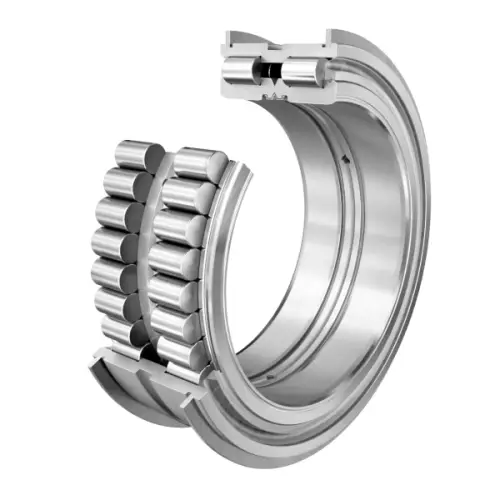

Cylindrical roller bearing SL04..-D-PP-2NR, full complement roller set, two-row, locating bearing, central rib on outer ring, 3 ribs on inner ring, type SL04
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
300 mm
Bore diameter
D
460 mm
Outside diameter
B
218 mm
Width
Cr
3,000,000 N
Basic dynamic load rating, radial
C0r
5,800,000 N
Basic static load rating, radial
Cur
650,000 N
Fatigue load limit, radial
nG Grease
415 1/min
Limiting speed for grease lubrication
≈m
125.65 kg
Weight
Mounting dimensions
Ca1
176 mm
Mounting dim for snap ring WRE (not included in delivery) Tolerance: 0/-0,2
Ca2
171 mm
Mounting dim for retaining ring to DIN 471 (not incl. In delivery) Tol: 0/-0,2
d1
347 mm
Rib diameter inner ring
d2
375 mm
Sealing diameter (rib)
d3
493 mm
Outside diameter of snap ring WRE
d1 min
347 mm
Minimum diameter shaft shoulder
30 u00B0
Chamfer angle
-0.2 mm
Lower distance snap ring tolerance
-0.2 mm
Lower distance retaining ring tolerance
0 mm
Upper distance snap ring tolerance
0 mm
Upper distance retaining ring tolerance
0 mm
Lower distance ring groove tolerance
0.2 mm
Upper distance ring groove tolerance
