INA SL1818/1000-E-TB-BR
Cylindrical Roller Bearings
Cylindrical roller bearing, SL1818..-E-TB full complement roller set, single row, semi-locating bearing, 1 rib on outer ring, 2 ribs on inner ring, type SL18
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
1,000 mm
Bore diameter
D
1,220 mm
Outside diameter
B
100 mm
Width
Cr
2,900,000 N
Basic dynamic load rating, radial
C0r
7,100,000 N
Basic static load rating, radial
Cur
530,000 N
Fatigue load limit, radial
CG
265 1/min
Limiting speed
nϑr
140 1/min
Reference speed
≈m
235.89 kg
Weight

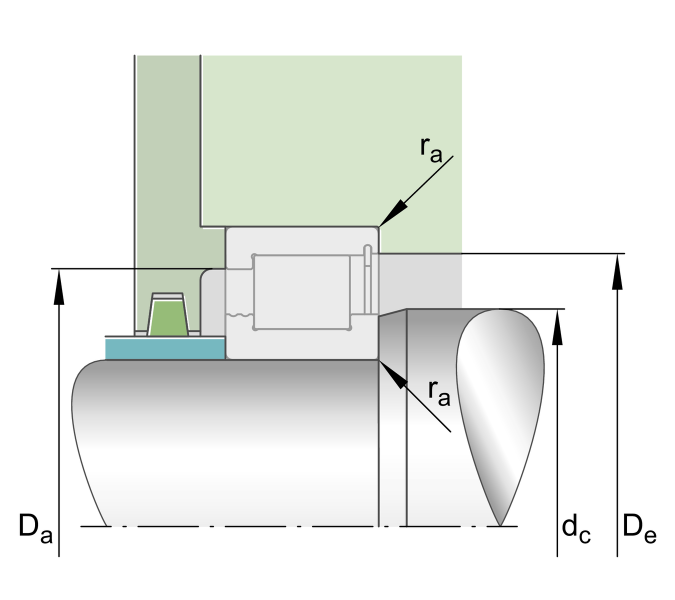

Mounting dimensions
da min
1,069.5 mm
Minimum diameter shaft shoulder
d min
1,069.5 mm
Minimum shaft shoulder
Da max
1,134 mm
Maximum diameter of housing shoulder
De min
1,155.5 mm
Minimum diameter of housing shoulder
ra max
6 mm
Maximum recess radius
E
1,155.9 mm
Raceway diameter outer ring
