INA SL1818/630-E-TB
Cylindrical Roller Bearings

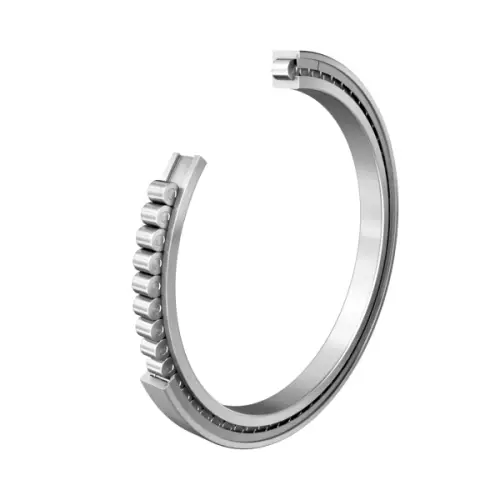

Cylindrical roller bearing, SL1818..-E-TB full complement roller set, single row, semi-locating bearing, 1 rib on outer ring, 2 ribs on inner ring, type SL18
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

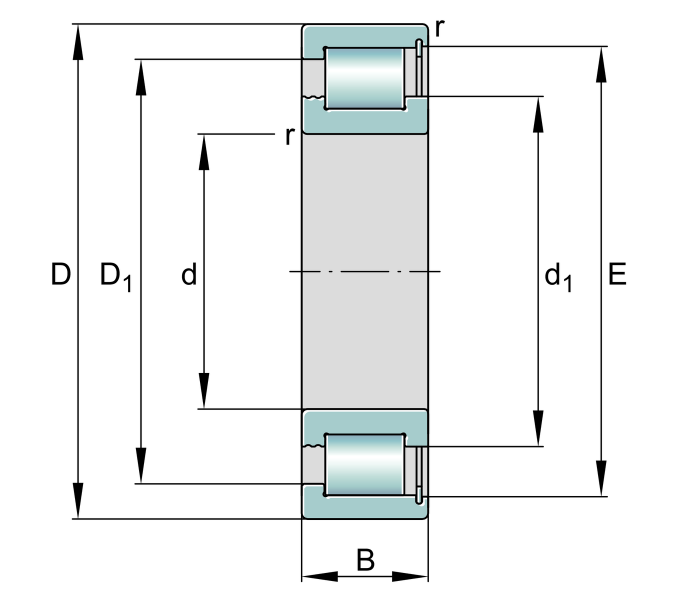

Main Dimensions & Performance Data
d
630 mm
Bore diameter
D
780 mm
Outside diameter
B
69 mm
Width
Cr
1,410,000 N
Basic dynamic load rating, radial
C0r
3,150,000 N
Basic static load rating, radial
Cur
285,000 N
Fatigue load limit, radial
CG
425 1/min
Limiting speed
nϑr
260 1/min
Reference speed
≈m
68 kg
Weight

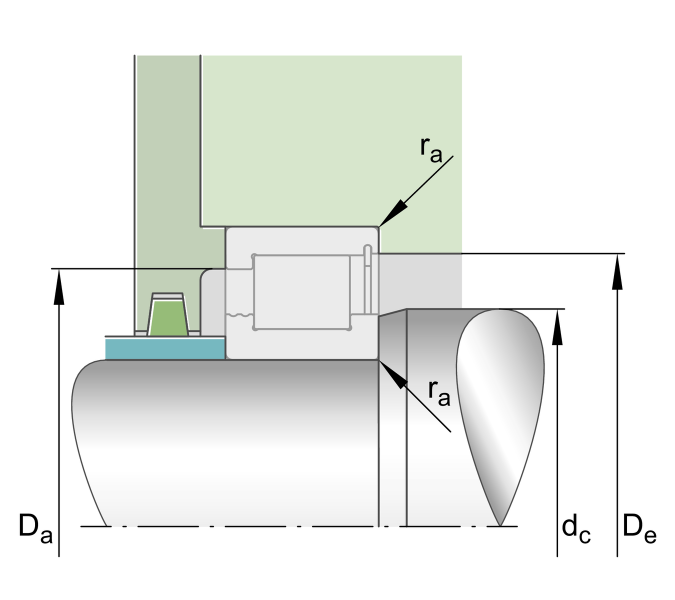

Mounting dimensions
da min
680 mm
Minimum diameter shaft shoulder
d min
680 mm
Minimum shaft shoulder
Da max
725.5 mm
Maximum diameter of housing shoulder
De min
742.5 mm
Minimum diameter of housing shoulder
ra max
4 mm
Maximum recess radius
E
742.5 mm
Raceway diameter outer ring
