INA SL182204-XL
Cylindrical Roller Bearings

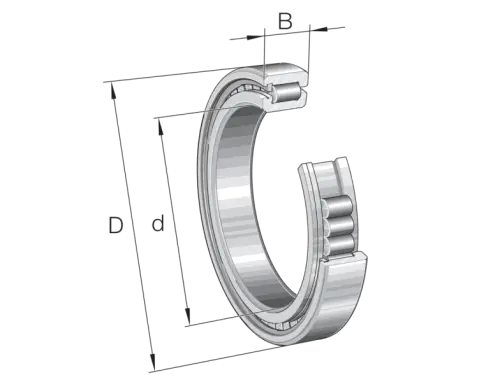

Cylindrical roller bearing SL1822..-A-XL, full complement roller set, single row, semi-locating bearing, 1 rib on outer ring, 2 ribs on inner ring, type SL18
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

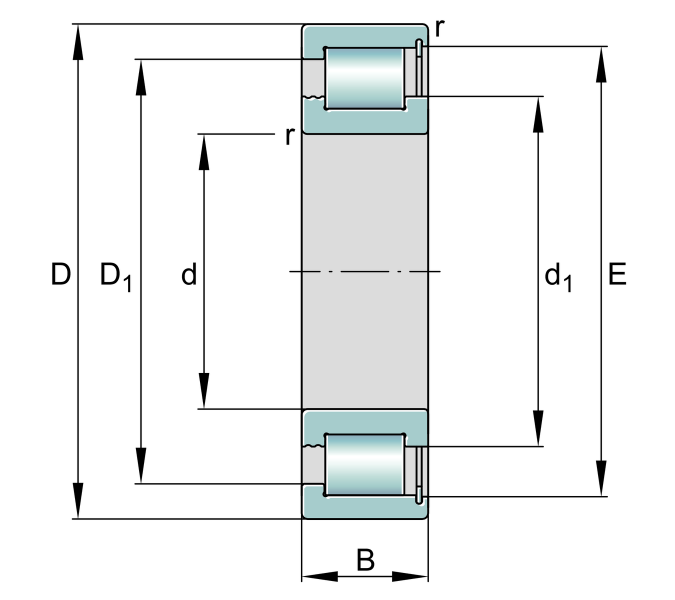

Main Dimensions & Performance Data
d
20 mm
Bore diameter
D
47 mm
Outside diameter
B
18 mm
Width
Cr
45,500 N
Basic dynamic load rating, radial
C0r
37,000 N
Basic static load rating, radial
Cur
6,200 N
Fatigue load limit, radial
CG
12,000 1/min
Limiting speed
nϑr
6,500 1/min
Reference speed
≈m
153.52 g
Weight

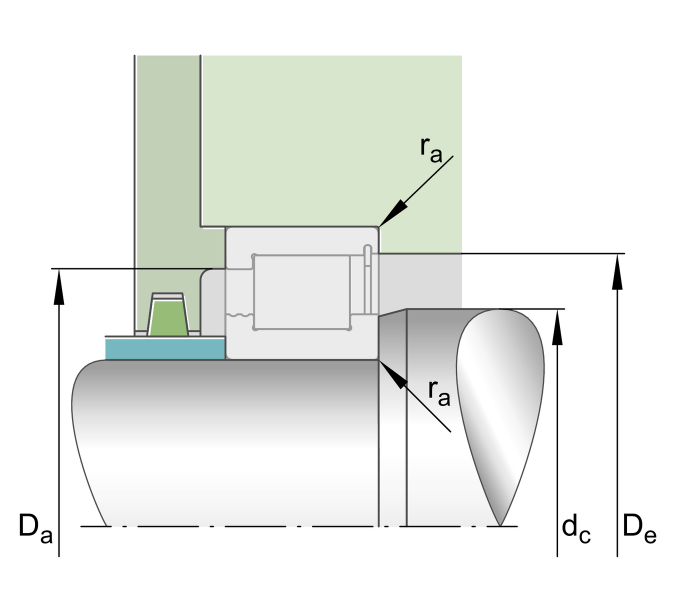

Mounting dimensions
da min
30.3 mm
Minimum diameter shaft shoulder
d min
30 mm
Minimum shaft shoulder
Da max
36.5 mm
Maximum diameter of housing shoulder
De min
41 mm
Minimum diameter of housing shoulder
ra max
1 mm
Maximum recess radius
E
41.5 mm
Raceway diameter outer ring
