INA SL182208-XL
Cylindrical Roller Bearings
Cylindrical roller bearing SL1822..-A-XL, full complement roller set, single row, semi-locating bearing, 1 rib on outer ring, 2 ribs on inner ring, type SL18
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
40 mm
Bore diameter
D
80 mm
Outside diameter
B
23 mm
Width
Cr
97,000 N
Basic dynamic load rating, radial
C0r
91,000 N
Basic static load rating, radial
Cur
15,200 N
Fatigue load limit, radial
CG
6,500 1/min
Limiting speed
nϑr
3,650 1/min
Reference speed
≈m
0.522 kg
Weight

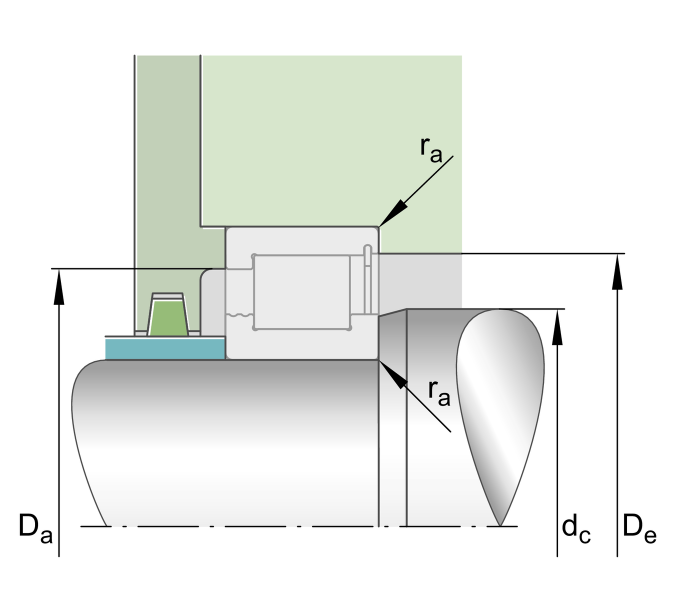

Mounting dimensions
da min
54 mm
Minimum diameter shaft shoulder
d min
54 mm
Minimum shaft shoulder
Da max
66 mm
Maximum diameter of housing shoulder
De min
70.5 mm
Minimum diameter of housing shoulder
ra max
1.1 mm
Maximum recess radius
E
70.9 mm
Raceway diameter outer ring
