INA SL182209-XL
Cylindrical Roller Bearings

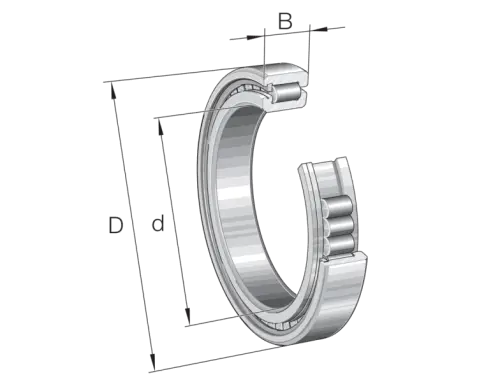

Cylindrical roller bearing SL1822..-A-XL, full complement roller set, single row, semi-locating bearing, 1 rib on outer ring, 2 ribs on inner ring, type SL18
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
45 mm
Bore diameter
D
85 mm
Outside diameter
B
23 mm
Width
Cr
101,000 N
Basic dynamic load rating, radial
C0r
98,000 N
Basic static load rating, radial
Cur
16,300 N
Fatigue load limit, radial
CG
6,100 1/min
Limiting speed
nϑr
3,450 1/min
Reference speed
≈m
569.9 g
Weight

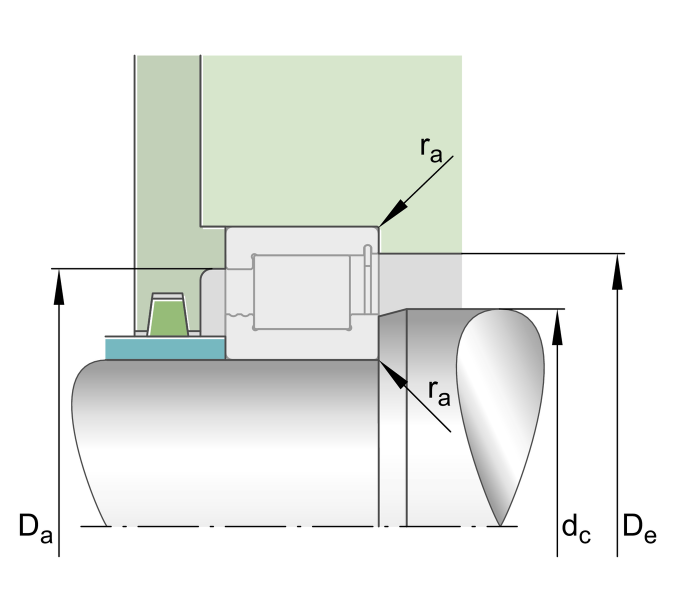

Mounting dimensions
da min
57.5 mm
Minimum diameter shaft shoulder
d min
57.5 mm
Minimum shaft shoulder
Da max
69.5 mm
Maximum diameter of housing shoulder
De min
74 mm
Minimum diameter of housing shoulder
ra max
1.1 mm
Maximum recess radius
E
74.4 mm
Raceway diameter outer ring
