INA SL182210-XL
Cylindrical Roller Bearings
Cylindrical roller bearing SL1822..-A-XL, full complement roller set, single row, semi-locating bearing, 1 rib on outer ring, 2 ribs on inner ring, type SL18
(BRAND)：INA
(Availability)：In Stock

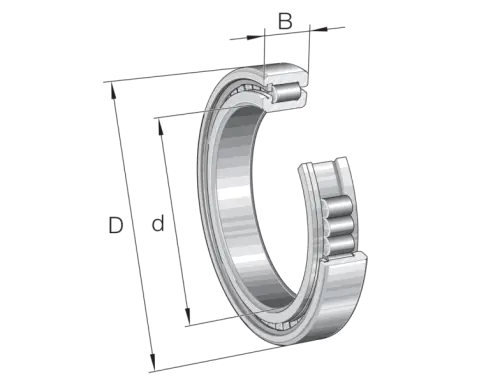

Main Dimensions & Performance Data
d
50 mm
Bore diameter
D
90 mm
Outside diameter
B
23 mm
Width
Cr
109,000 N
Basic dynamic load rating, radial
C0r
111,000 N
Basic static load rating, radial
Cur
18,500 N
Fatigue load limit, radial
CG
5,500 1/min
Limiting speed
nϑr
3,000 1/min
Reference speed
≈m
608.2 g
Weight

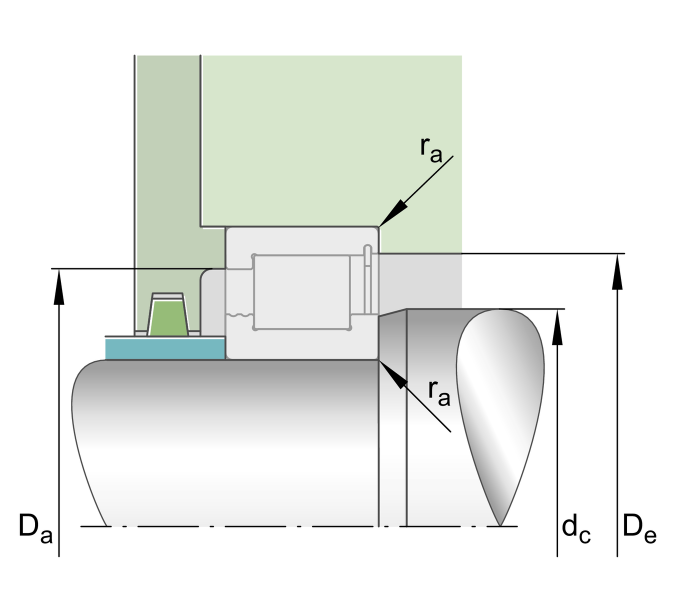

Mounting dimensions
da min
64.4 mm
Minimum diameter shaft shoulder
d min
64 mm
Minimum shaft shoulder
Da max
76.5 mm
Maximum diameter of housing shoulder
De min
81 mm
Minimum diameter of housing shoulder
ra max
1.1 mm
Maximum recess radius
E
81.4 mm
Raceway diameter outer ring
