INA SL182212-XL
Cylindrical Roller Bearings
Cylindrical roller bearing SL1822..-A-XL, full complement roller set, single row, semi-locating bearing, 1 rib on outer ring, 2 ribs on inner ring, type SL18
(BRAND)：INA
(Availability)：In Stock

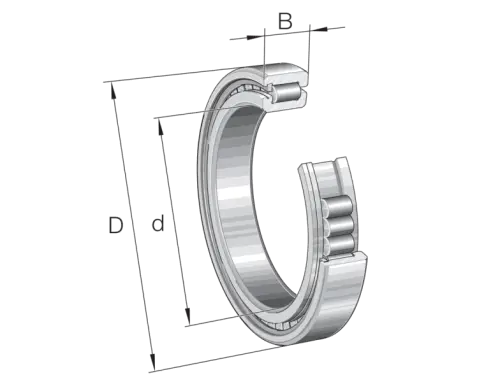

Main Dimensions & Performance Data
d
60 mm
Bore diameter
D
110 mm
Outside diameter
B
28 mm
Width
Cr
169,000 N
Basic dynamic load rating, radial
C0r
176,000 N
Basic static load rating, radial
Cur
33,000 N
Fatigue load limit, radial
CG
4,500 1/min
Limiting speed
nϑr
2,550 1/min
Reference speed
≈m
1,134.5 g
Weight

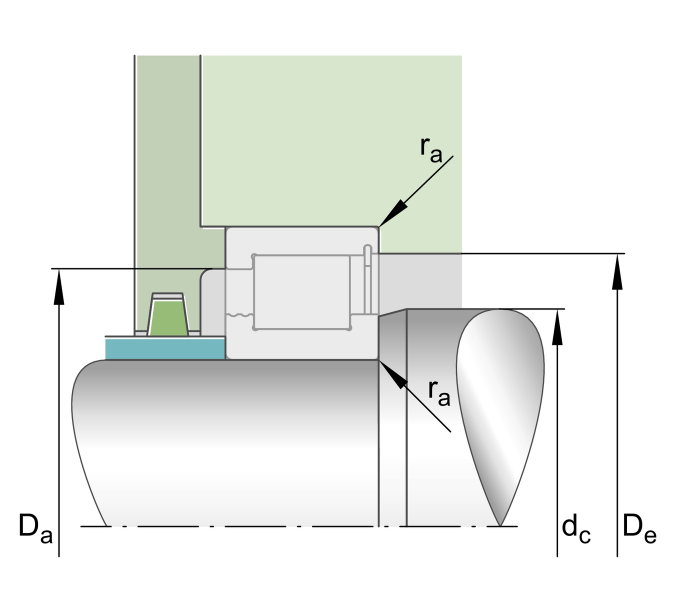

Mounting dimensions
da min
76.8 mm
Minimum diameter shaft shoulder
d min
76.5 mm
Minimum shaft shoulder
Da max
93.5 mm
Maximum diameter of housing shoulder
De min
99 mm
Minimum diameter of housing shoulder
ra max
1.5 mm
Maximum recess radius
E
99.2 mm
Raceway diameter outer ring
