INA SL182224
Cylindrical Roller Bearings

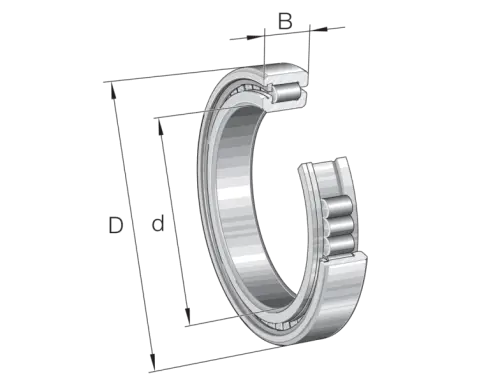

Cylindrical roller bearing SL1822..-A, full complement roller set, single row, semi-locating bearing, 1 rib on outer ring, 2 ribs on inner ring, type SL18
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

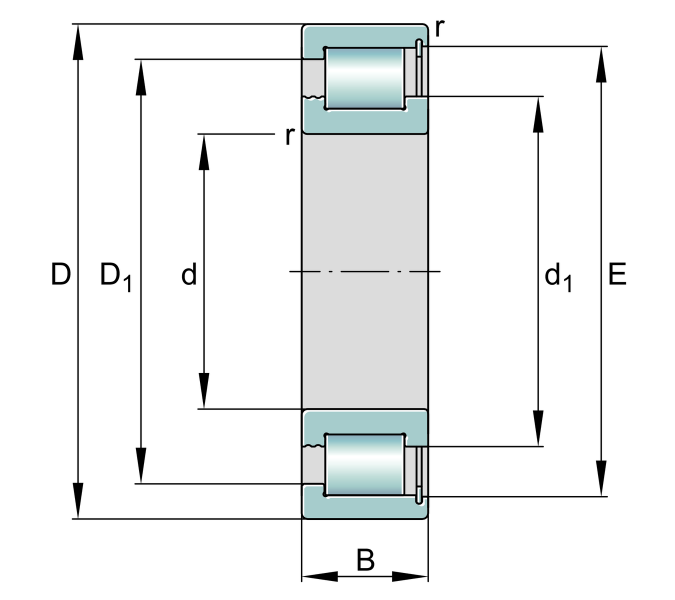

Main Dimensions & Performance Data
d
120 mm
Bore diameter
D
215 mm
Outside diameter
B
58 mm
Width
Cr
530,000 N
Basic dynamic load rating, radial
C0r
720,000 N
Basic static load rating, radial
Cur
100,000 N
Fatigue load limit, radial
CG
1,930 1/min
Limiting speed
nϑr
1,500 1/min
Reference speed
≈m
8.862 kg
Weight

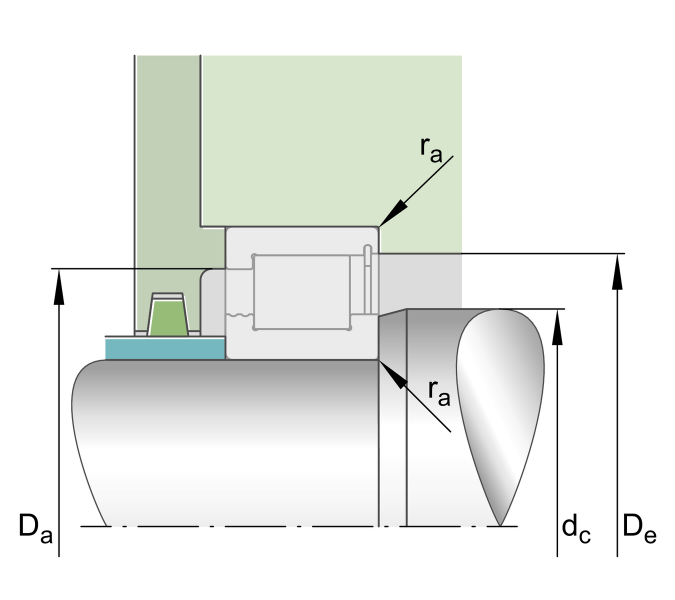

Mounting dimensions
da min
151 mm
Minimum diameter shaft shoulder
d min
150.5 mm
Minimum shaft shoulder
Da max
183 mm
Maximum diameter of housing shoulder
De min
192.5 mm
Minimum diameter of housing shoulder
ra max
2.1 mm
Maximum recess radius
E
192.32 mm
Raceway diameter outer ring
