INA SL182996-TB
Cylindrical Roller Bearings

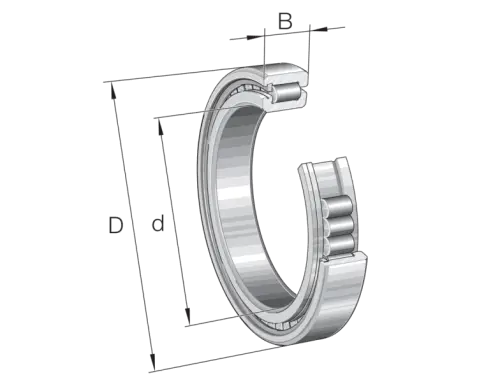

Cylindrical roller bearing SL1829..-TB, full complement roller set, single row, semi-locating bearing, 1 rib on outer ring, 2 ribs on inner ring, type SL18
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

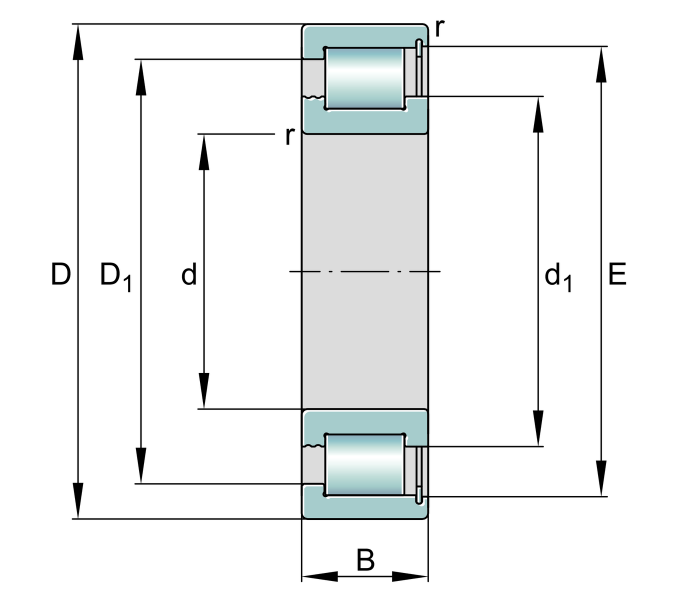

Main Dimensions & Performance Data
d
480 mm
Bore diameter
D
650 mm
Outside diameter
B
100 mm
Width
Cr
2,390,000 N
Basic dynamic load rating, radial
C0r
4,800,000 N
Basic static load rating, radial
Cur
480,000 N
Fatigue load limit, radial
CG
530 1/min
Limiting speed
nϑr
280 1/min
Reference speed
≈m
92.22 kg
Weight

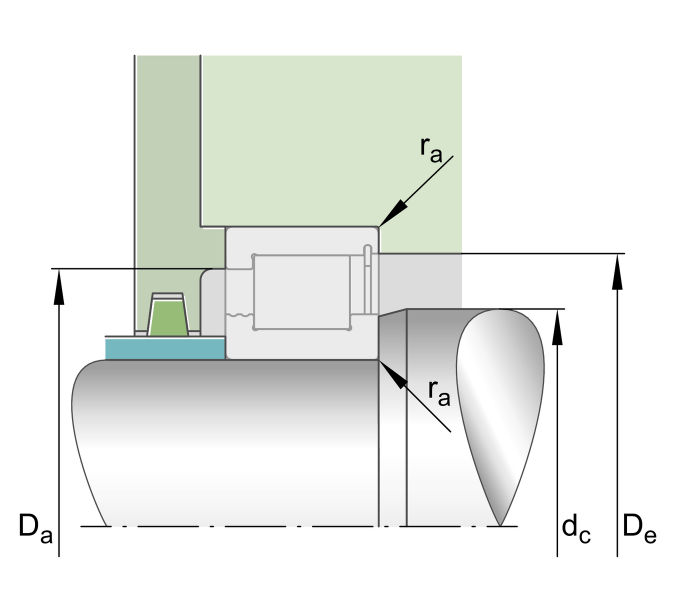

Mounting dimensions
da min
538 mm
Minimum diameter shaft shoulder
d min
538 mm
Minimum shaft shoulder
Da max
596.5 mm
Maximum diameter of housing shoulder
De min
614.5 mm
Minimum diameter of housing shoulder
ra max
5 mm
Maximum recess radius
E
614.8 mm
Raceway diameter outer ring
