INA SL183004-XL
Cylindrical Roller Bearings

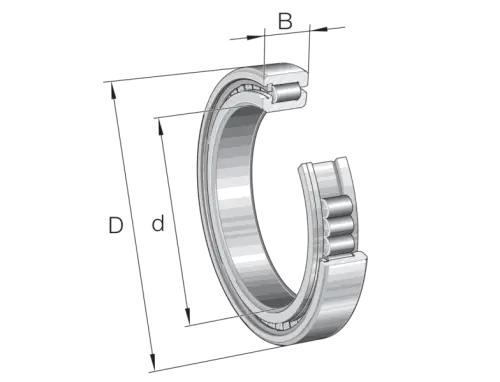

Cylindrical roller bearing SL18, full complement roller set, two-row, semi-locating bearing, 1 rib on outer ring, 3 ribs on inner ring, type SL18
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
20 mm
Bore diameter
D
42 mm
Outside diameter
B
16 mm
Width
Cr
30,500 N
Basic dynamic load rating, radial
C0r
26,000 N
Basic static load rating, radial
Cur
4,550 N
Fatigue load limit, radial
CG
13,100 1/min
Limiting speed
nϑr
7,500 1/min
Reference speed
≈m
104.86 g
Weight

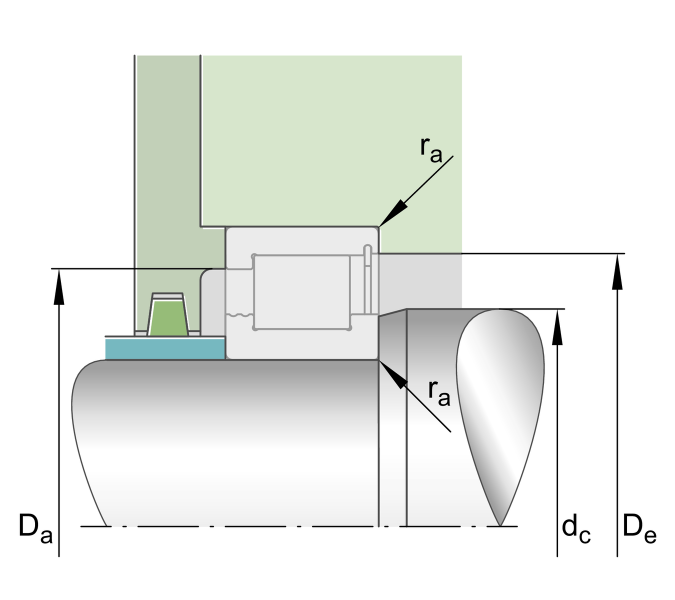

Mounting dimensions
da min
28.8 mm
Minimum diameter shaft shoulder
d min
28.5 mm
Minimum shaft shoulder
Da max
32.5 mm
Maximum diameter of housing shoulder
De min
36.5 mm
Minimum diameter of housing shoulder
ra max
0.6 mm
Maximum recess radius
E
36.8 mm
Raceway diameter outer ring
