INA SL183022
Cylindrical Roller Bearings

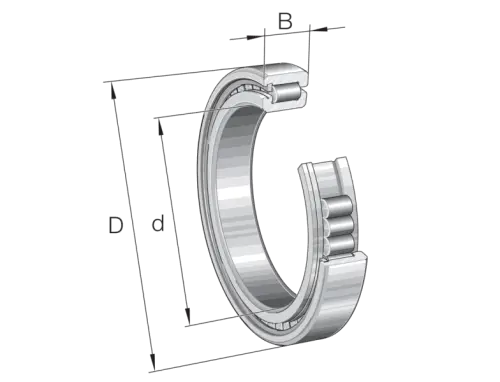

Cylindrical roller bearing SL18..-A, full complement roller set, single row, semi-locating bearing, 1 rib on outer ring, 2 ribs on inner ring, type SL18
(BRAND)：INA
(Availability)：In Stock

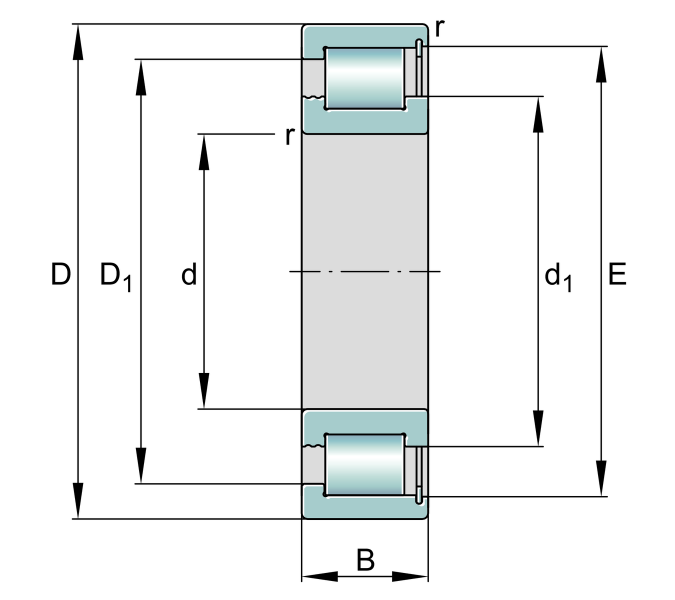

Main Dimensions & Performance Data
d
110 mm
Bore diameter
D
170 mm
Outside diameter
B
45 mm
Width
Cr
280,000 N
Basic dynamic load rating, radial
C0r
385,000 N
Basic static load rating, radial
Cur
55,000 N
Fatigue load limit, radial
CG
2,350 1/min
Limiting speed
nϑr
2,010 1/min
Reference speed
≈m
3.374 kg
Weight

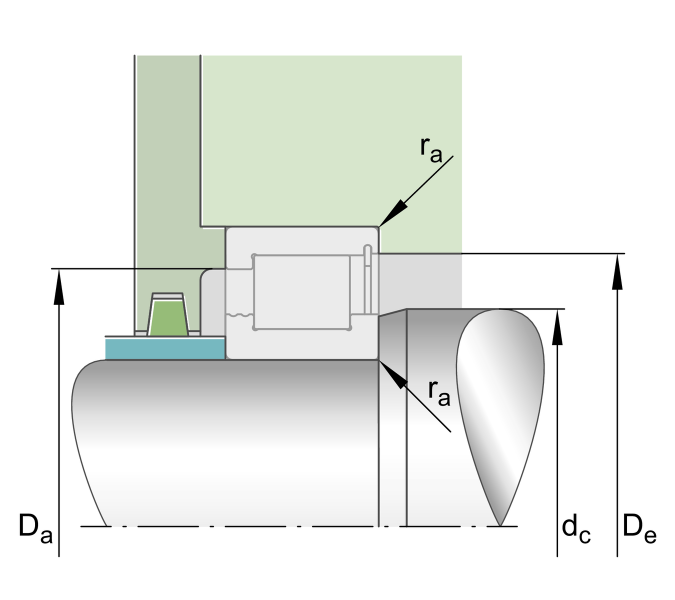

Mounting dimensions
da min
127.3 mm
Minimum diameter shaft shoulder
d min
127 mm
Minimum shaft shoulder
Da max
149 mm
Maximum diameter of housing shoulder
De min
156.5 mm
Minimum diameter of housing shoulder
ra max
2 mm
Maximum recess radius
E
156.7 mm
Raceway diameter outer ring
