INA SL183068-TB
Cylindrical Roller Bearings
Cylindrical roller bearing SL1830..-TB ,full complement roller set, single row, semi-locating bearing, 1 rib on outer ring, 2 ribs on inner ring, type SL18
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

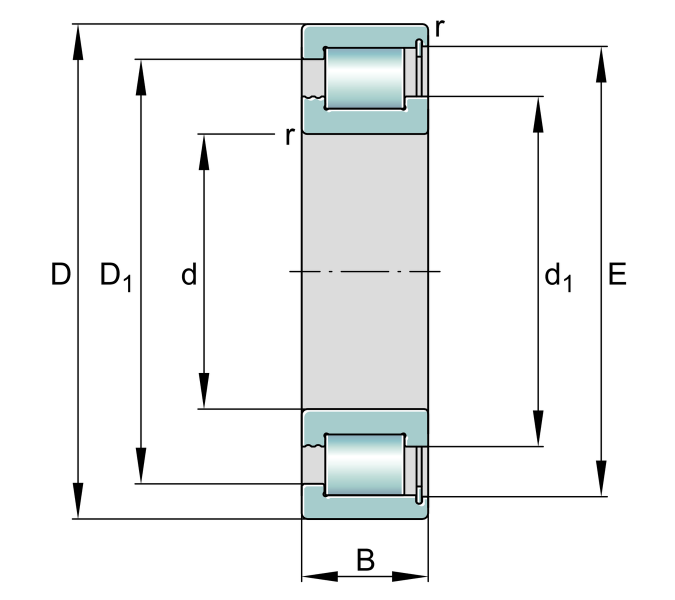

Main Dimensions & Performance Data
d
340 mm
Bore diameter
D
520 mm
Outside diameter
B
133 mm
Width
Cr
2,490,000 N
Basic dynamic load rating, radial
C0r
4,150,000 N
Basic static load rating, radial
Cur
405,000 N
Fatigue load limit, radial
CG
710 1/min
Limiting speed
nϑr
430 1/min
Reference speed
≈m
93.26 kg
Weight

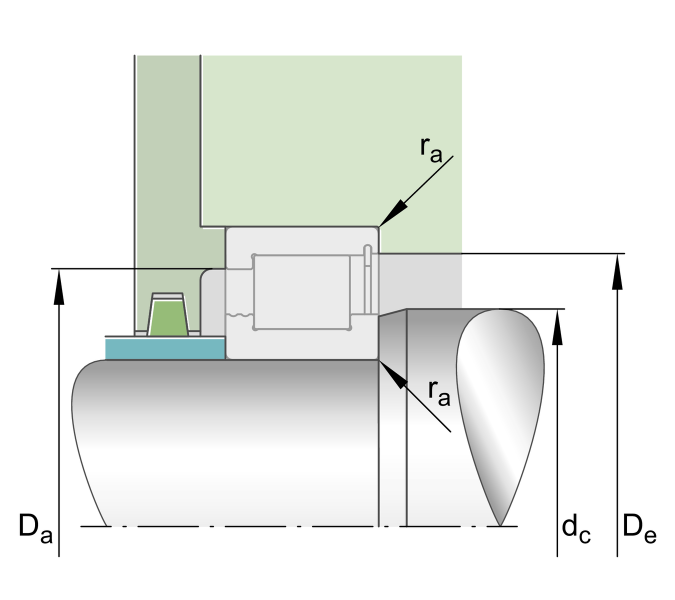

Mounting dimensions
da min
396 mm
Minimum diameter shaft shoulder
d min
396 mm
Minimum shaft shoulder
Da max
463.5 mm
Maximum diameter of housing shoulder
De min
485.5 mm
Minimum diameter of housing shoulder
ra max
5 mm
Maximum recess radius
E
485.7 mm
Raceway diameter outer ring
