INA SL184930-A
Cylindrical Roller Bearings

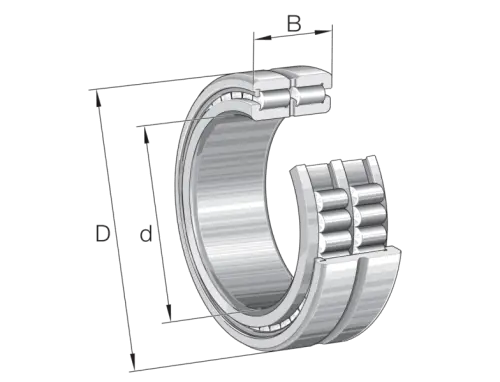

Cylindrical roller bearing SL18..-A, full complement roller set, two-row, semi-locating bearing, 1 rib on outer ring, 3 ribs on inner ring, type SL18
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
150 mm
Bore diameter
D
210 mm
Outside diameter
B
60 mm
Width
Cr
410,000 N
Basic dynamic load rating, radial
C0r
820,000 N
Basic static load rating, radial
Cur
105,000 N
Fatigue load limit, radial
CG
1,790 1/min
Limiting speed
nϑr
1,200 1/min
Reference speed
≈m
6.65 kg
Weight
Mounting dimensions
d min
170.5 mm
Minimum shaft shoulder
da min
170.8 mm
Minimum diameter shaft shoulder
Da max
186.5 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum recess radius
ra1 max
2 mm
Maximum recess radius
De min
186.5 mm
Minimum diameter of housing shoulder
