INA SL185017
Cylindrical Roller Bearings
Cylindrical roller bearing SL1850..-A, full complement roller set, two-row, semi-locating bearing, 1 rib on outer ring, 3 ribs on inner ring, type SL18
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

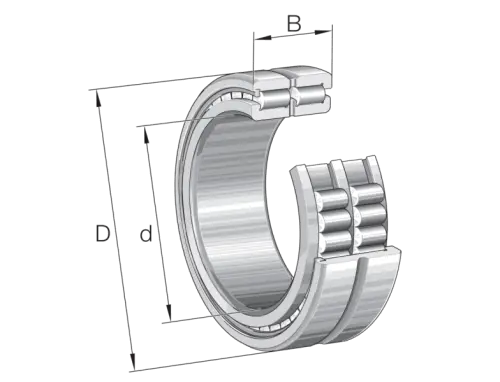

Main Dimensions & Performance Data
d
85 mm
Bore diameter
D
130 mm
Outside diameter
B
60 mm
Width
Cr
300,000 N
Basic dynamic load rating, radial
C0r
465,000 N
Basic static load rating, radial
Cur
69,000 N
Fatigue load limit, radial
CG
3,050 1/min
Limiting speed
nϑr
2,210 1/min
Reference speed
≈m
2.612 kg
Weight

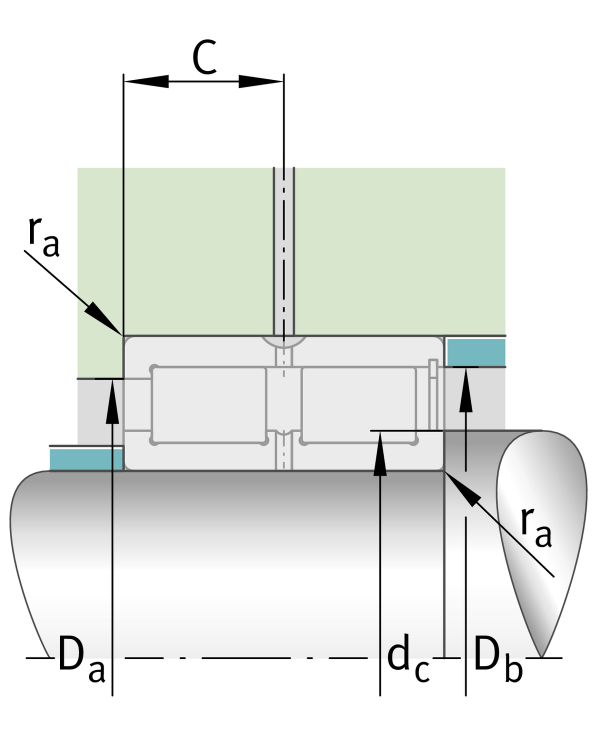

Mounting dimensions
d min
99 mm
Minimum shaft shoulder
da min
99 mm
Minimum diameter shaft shoulder
Da max
116.5 mm
Maximum diameter of housing shoulder
ra max
1.1 mm
Maximum recess radius
ra1 max
2 mm
Maximum recess radius
De min
116.1 mm
Minimum diameter of housing shoulder
